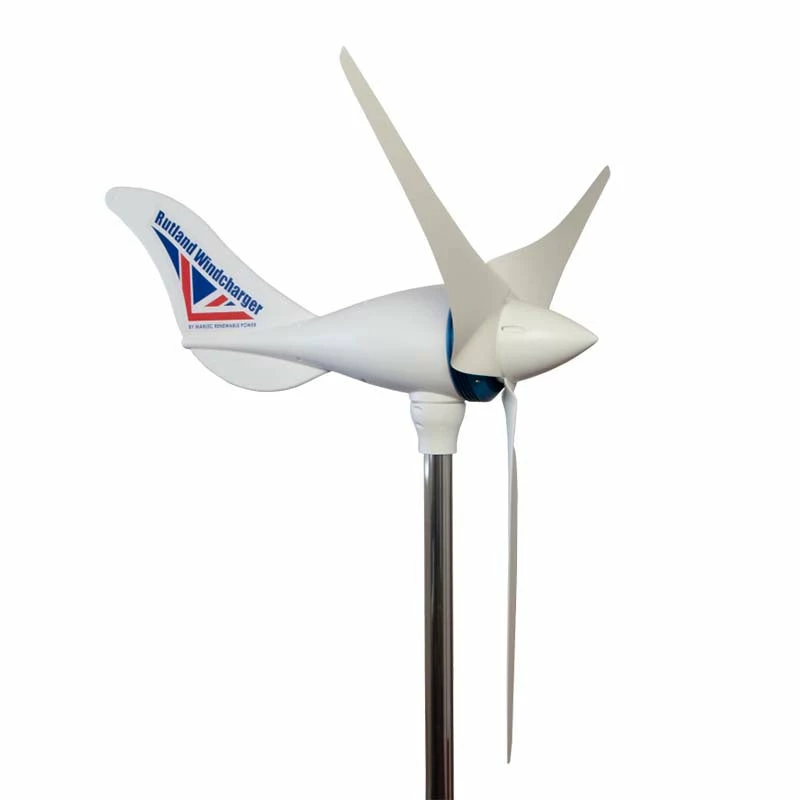

Rutland 1200i Windcharger With Regulator 24V

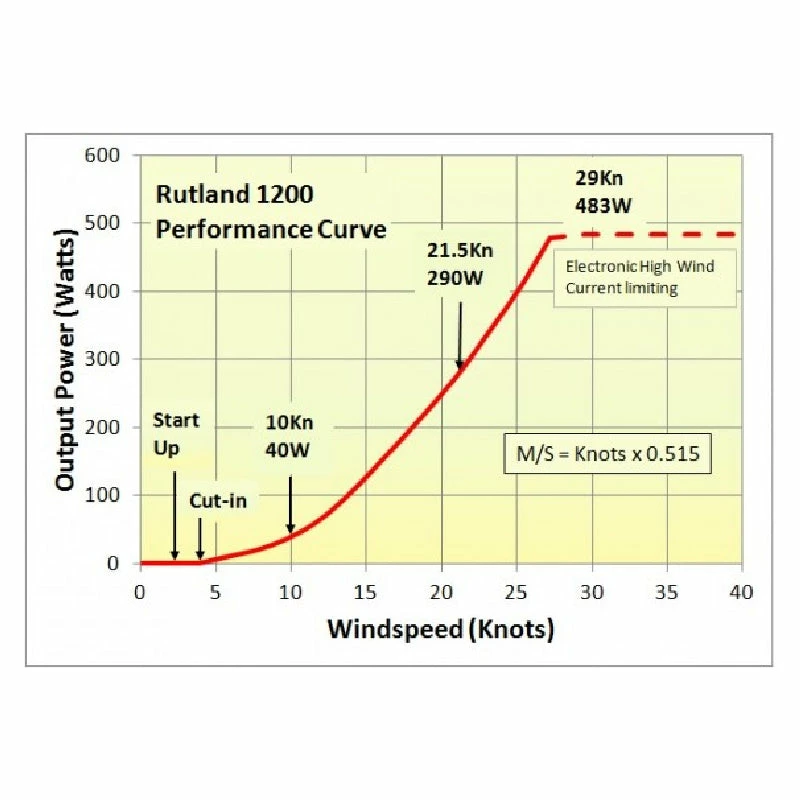

The new Rutland 1200i 24 volt wind generator starts charging at lower wind speeds generating 1.6 amps in 10 knots of wind.

Low wind speed output in the 8-10 knot range is what counts. The Rutland 1200 delivers at low wind speeds with appreciable output at higher wind speeds as well. Consider that in most cases we select anchorages that are protected from the wind in which case the output at higher wind speeds is not so important. Consider the time spent at anchor versus sailing.

When sailing the apparent wind is typically higher so the additional loads when under way are typically well covered in the 15 to 20 knot range.

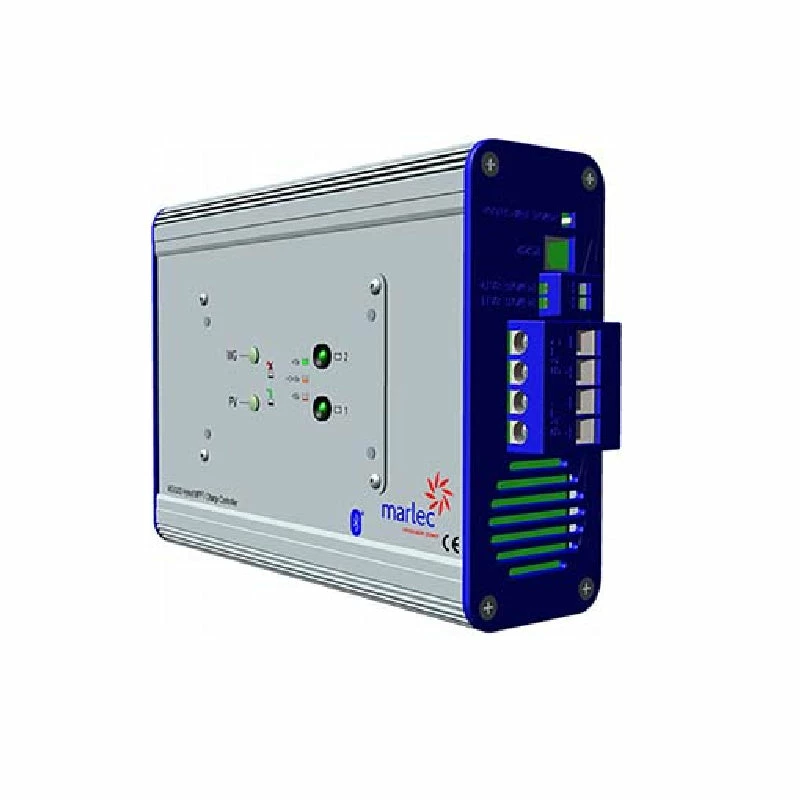

Charge Controller

Included with the wind generator is a charge controller which is suitable for both lead acid and Lithium batteries (always check manufacturers specifications). In the case of Lithium, do not connect the supplied temperature compensation sensor.

Parameter	Value
Float Voltage	27.6 volts – temperature compensated
Absorb Voltage	28.8 volts – temperature compensated
Maximum Solar Voc	50 volts
Charge Cycle Restart	Less than 25.0 volts
