Features

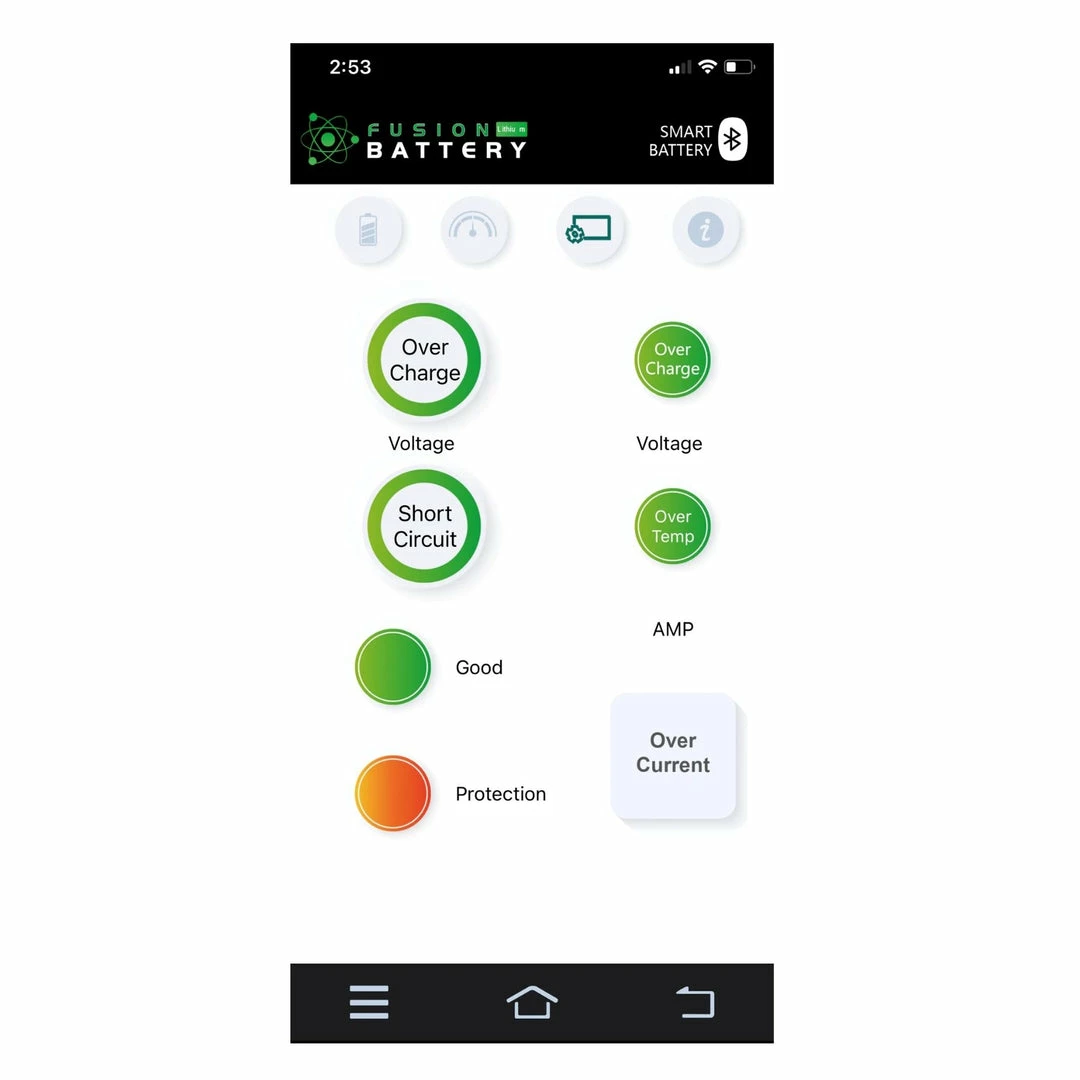

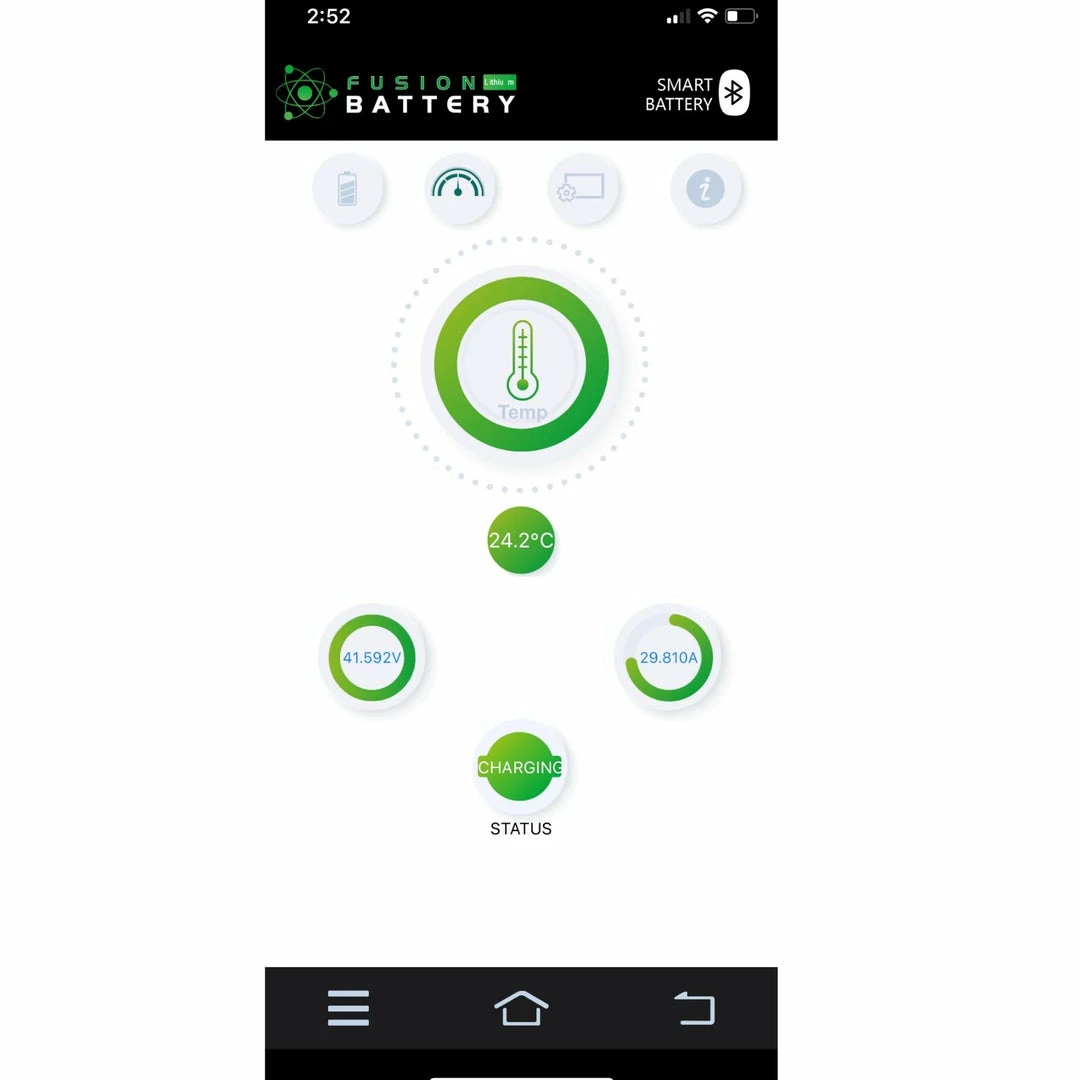

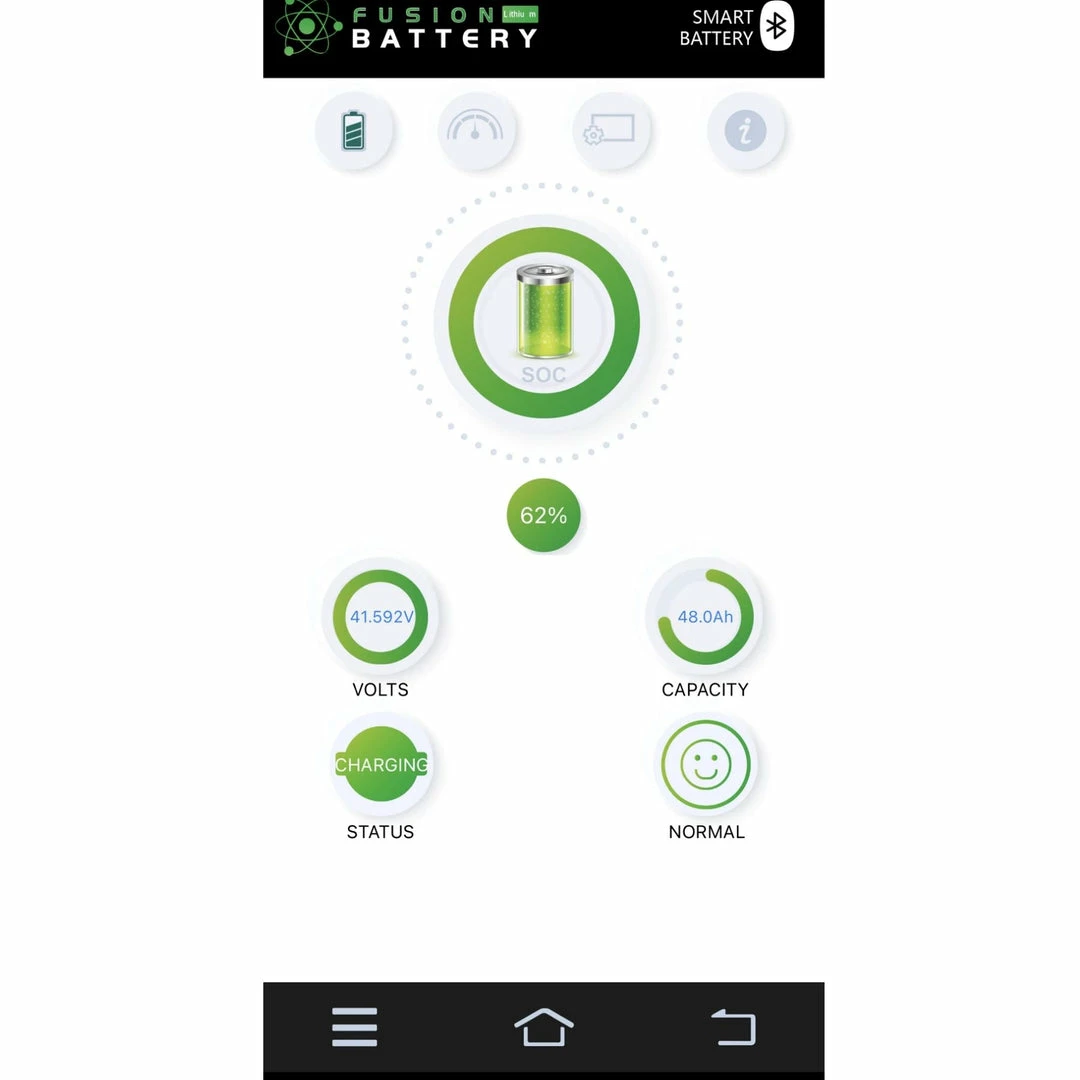

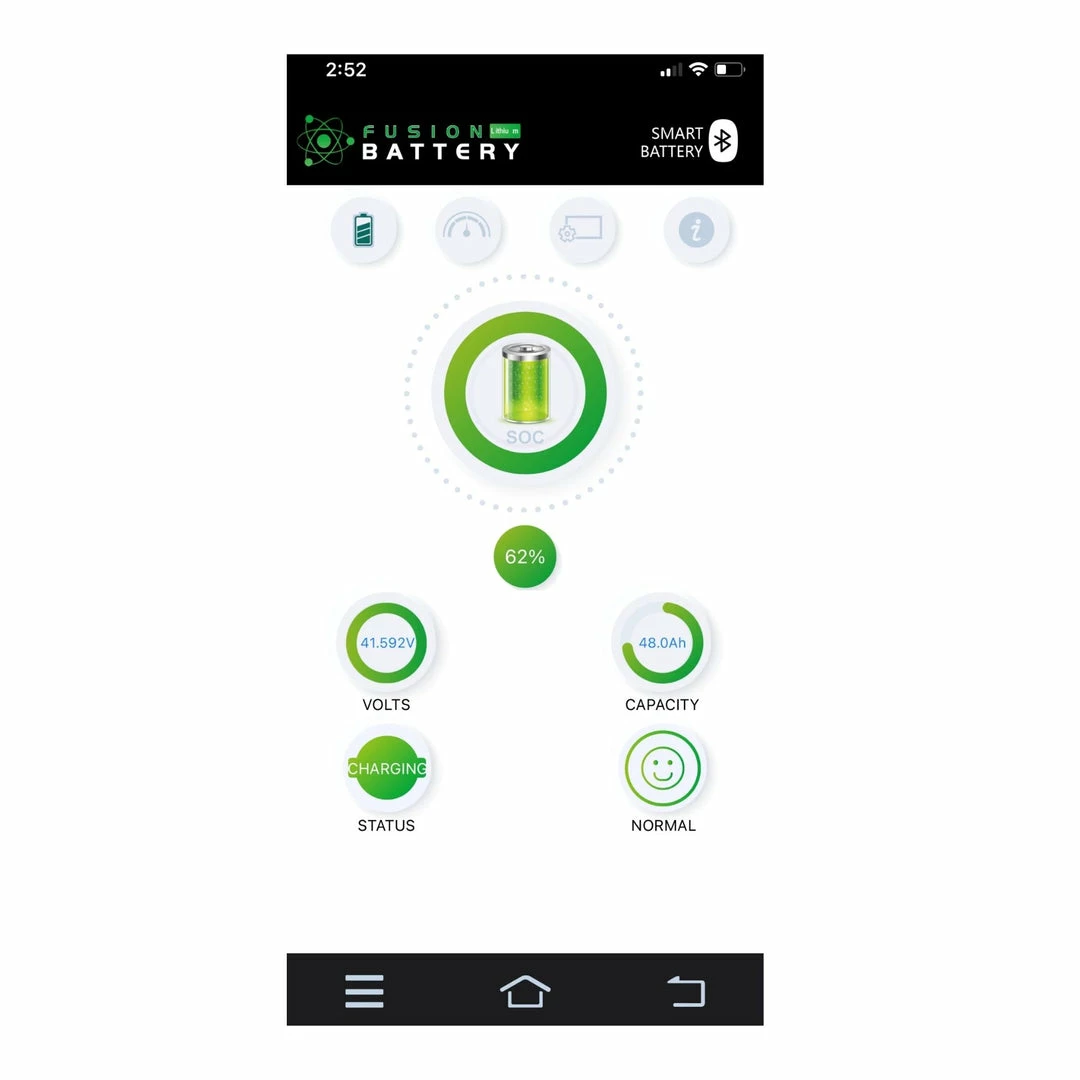

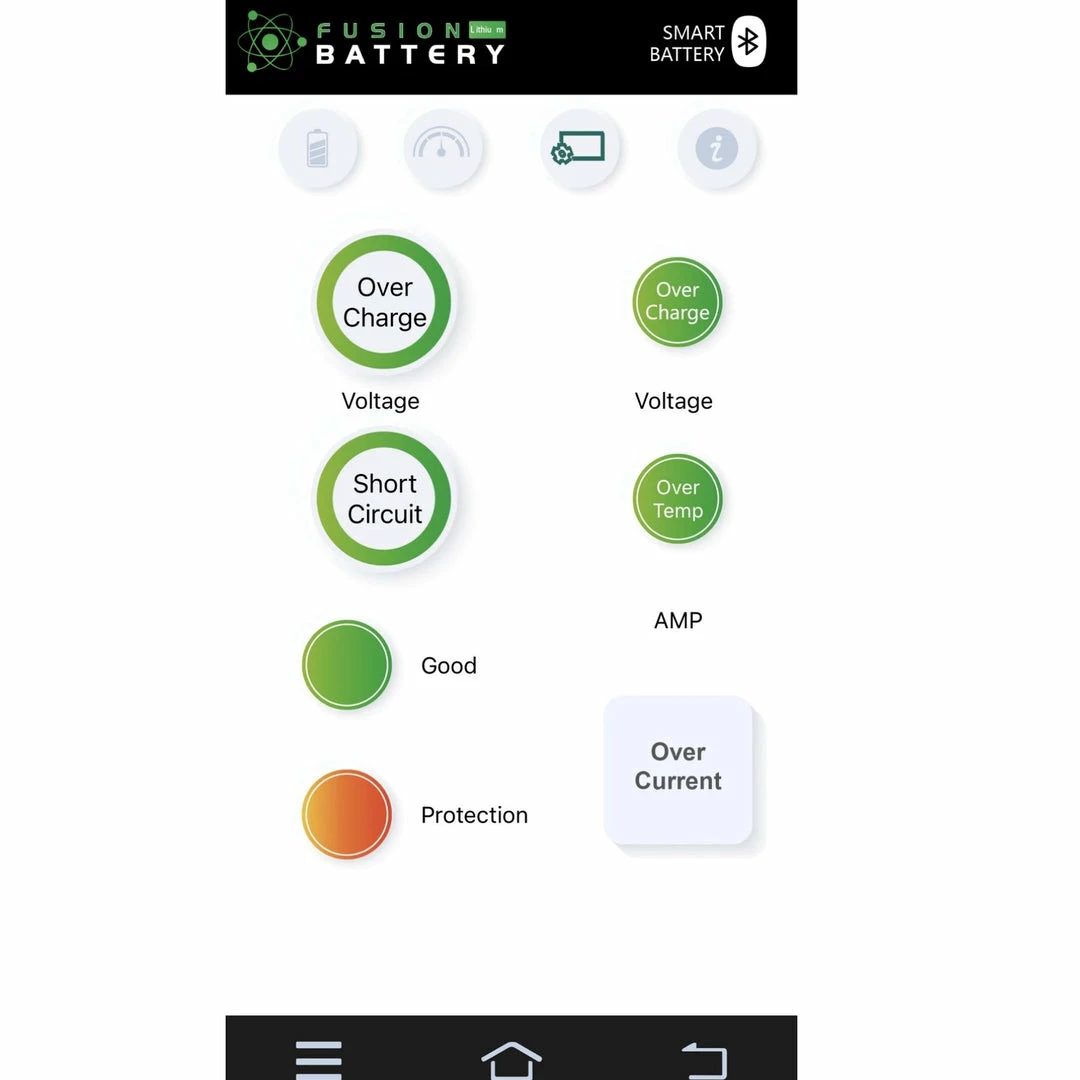

- Built-in bluetooth monitoring
- Purpose designed for trolling motor application
- Ultra light-weight
- Comes with 30A Charger

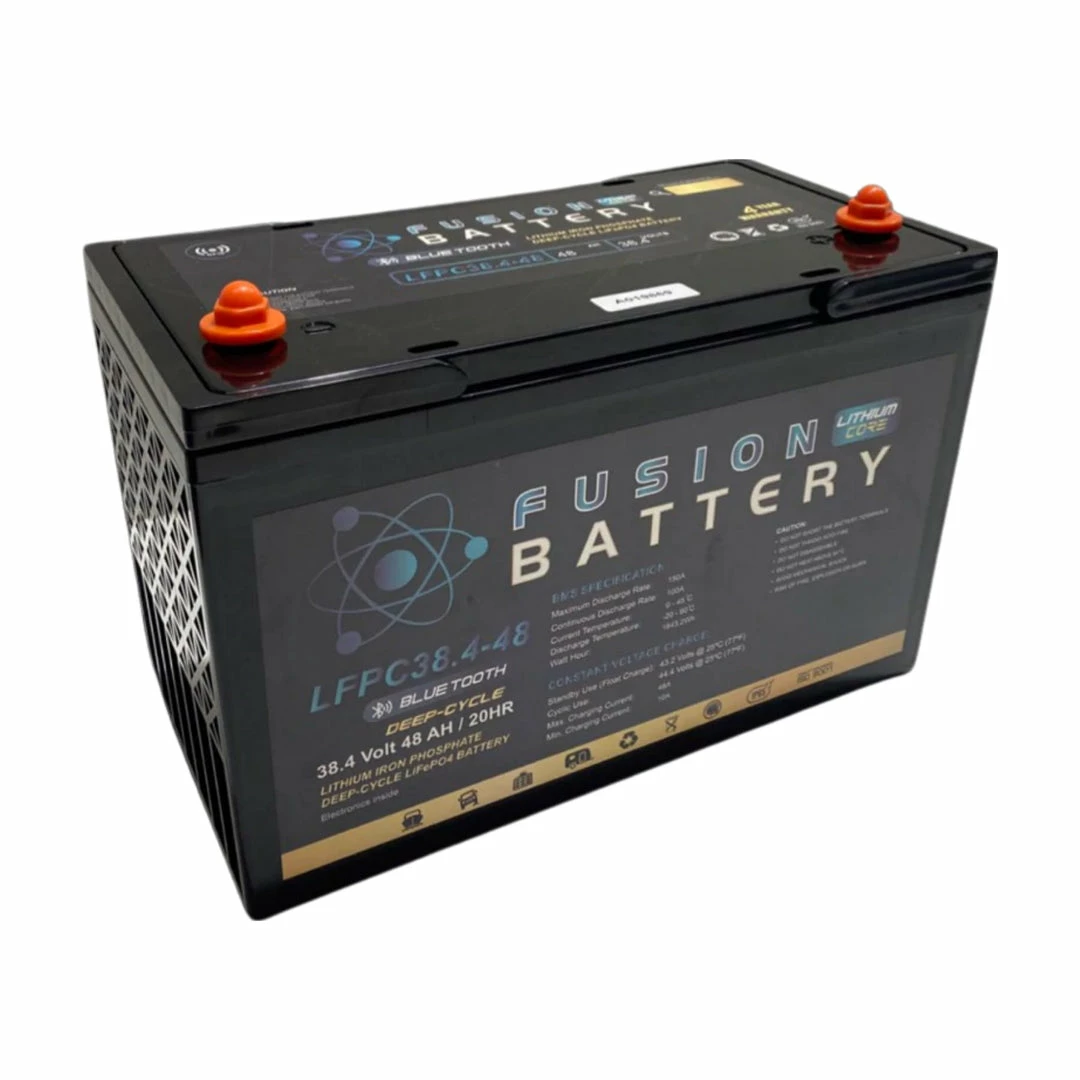

Battery Pack Specifications
| Items | Standard | Â Comments |
| Nominal voltage | 38.4V | 12S |
| Typical capacity | 48Ah | At 0.2C discharge rate |
| Max continuous discharge current | 80A | |
| Discharge cut-off voltage | About 30V | |
| Charge input voltage | 43.8±0.5V | Current, constant voltage(CC/CV) AGM charger & truck alternator is recommended. Lithium-ion charger is acceptable. |
| Charge current | ≤80A | Current, constant voltage(CC/CV) AGM charger & truck alternator is recommended. Lithium-ion charger is acceptable. |
| Operation temperature range | Charge/ Discharge | 0°C~+45°C/-20°C~+60°C |
| Discharge | When the environment temperature is higher than 45°C,please pay attention to ventilation and heat rejection. | |
| Storage temperature range | 0°C~40°C (Capacity 80%) | Recommended long-term storage temperature is 15~25°C |
| BMS Low Temperature Cut-off | -10 degrees Celsius | -10 degrees Celsius |
| BMS Low Temperature Turn-On | 0 degrees Celsius | 0 degrees Celsius |
| BMS High Temperature Cut-off | 80 degrees Celsius | 80 degrees Celsius |
| BMS High Temperature Turn-On | 70 C | 70 C |
| Humidity | 5%≤RH≤85% | 5%≤RH≤85% |
| IP Rating | 65 | 65 |
| Total Weight | 14.1±0.1kg | 14.1±0.1kg |
| Size(L*W*H) | L(330mm)* W(173mm)* H(212mm) | L(330mm)* W(173mm)* H(212mm) |
| Protection function | Over charge protection Over discharge protection Over current protection Short circuit protection, Temperature protection. | Over charge protection Over discharge protection Over current protection Short circuit protection, Temperature protection. |
Â
Electrical Performance
| Test Items | Test Methods | Â Test Standards |
| Capacity retention rate | After standard charge under 5.1 specified conditions, store the cells for 28 days, then discharge at 0.2C(A )to cut-off voltage. | Capacity retention rate≥80% |
| Cycle Life | 1) Standard charge at 0.2C(A), 2) Rest 0.5~1 h 3) Discharge at 0.2C to cut off voltage 4) Capacity retention rate≥80% | >2000cycles @ 100% DOD; >3000cycles @ 90% DOD; >4000cycles @ 80% DOD; |
Â
Characteristic Curve

Cautions
- Charging current should not be more than maximum charge current specified in the Product
- Specification, Charging current bigger than recommended current may damage the battery;
- Discharging current should be no more than maximum discharge current specified in the Product
- Specification; Discharging current bigger than recommended discharge current may damage the
- battery;
- It should be noted that the cell would be possible to be at a over-discharged state by its
- self-discharge characteristics in case the cell is not used for long time. In order to prevent
- over-discharging, the cell shall be charged periodically to maintain between 38.4V and40.8V
- (Recommended 3 months one cycle).Over-discharging may causes loss of cell performance,
- characteristics, or battery functions;
- Please charge the battery within 12 hours after use;
- Battery storage environment follow the above conditions and in standard atmosphere, should be
- without strong magnet, no power, no static;
- Do not reverse the polarity of the battery pack for any reason;
- Do not short circuit the battery pack;
- Do not reverse polarity charging;
- Battery packs can be combined in series or in parallel according to the specification;
- IP65. Do not immerse the battery pack in water or sea water;
- Do not disassemble battery;
- Do not expose the battery to extreme heat or flame;
- AGM charger or truck alternator is recommended. Excludes chargers with automotive
- rejuvenation function.
- Lithium-ion charger is acceptable.
