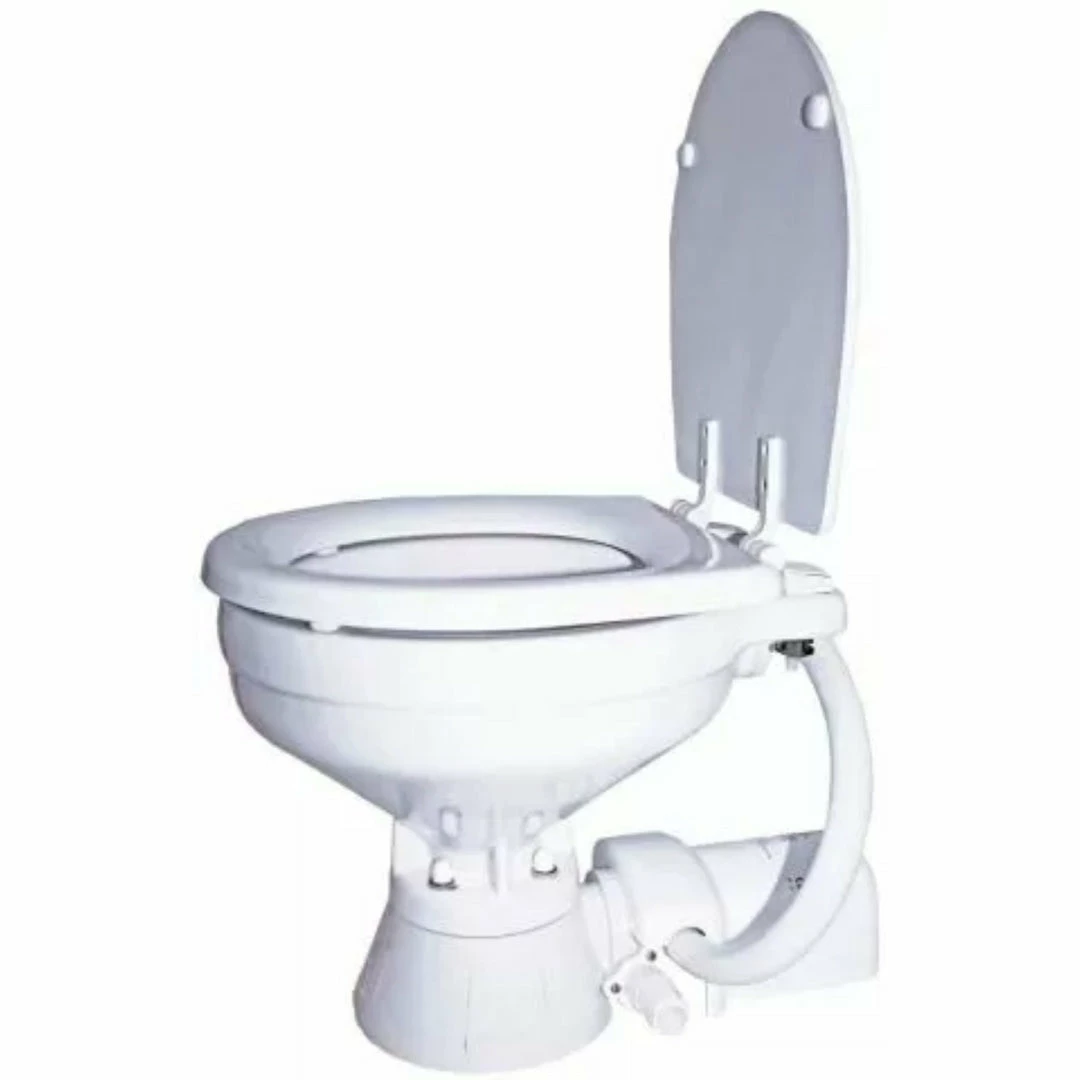

Jabsco Premium Electric Toilets

Heavy duty, premium quality electric marine toilets with many features for high performance, comfort, easy cleaning and attractive appearance. Gives the ease and convenience of electric operation at an affordable price.

• Pure white vitreous china bowl, contoured base, covered motor and fastening covers all contribute to easy cleaning and attractive appearance
• Standard compact sized bowl where space is at a premium or large household type bowl with large seat & lid for at-home type comfort
• Heavy duty dual flush pump self-primes up to 1.2 metres vertical lift and grinds waste as it pumps, with stainless macerator
• May be mounted 1 metre below the waterline
• Equally suitable for overboard or holding tank discharge
• Built-in backflow preventer in discharge housing
• Stainless steel and bronze fastenings for reliable salt water service

Supplied complete with heavy duty push button switch. Plumbing connections suit both 16mm (5/8″) & 20mm (3/4″) inlet hose and both 25mm (1″) and 38mm (1 1/2″) outlet hose. Standard compact bowl or large bowl toilets in both 12 volt and 24 volt. For installations below the static or heeled waterline vented loops should be fitted – also use a solenoid valve (J11-122) – see page 261 for details.

Standard Compact Bowl Electric Toilet

• Size : 352mm wide x 450mm deep x 350mm high
• J10-105 12 volt 16 amp standard bowl Jabsco 37010-3092
• J10-106 24 volt 9 amp standard bowl Jabsco 37010-3094

Large Bowl Electric Toilet With Large Seat & Lid

• Size : 380mm wide x 490mm deep x 370mm high
• J10-107 12 volt 16 amp large bowl Jabsco 37010-4192
• J10-108 24 volt 9 amp large bowl Jabsco 37010-4194
