Drypower 12.8V Lithium Iron Phosphate (LiFePO4) Rechargeable Battery

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

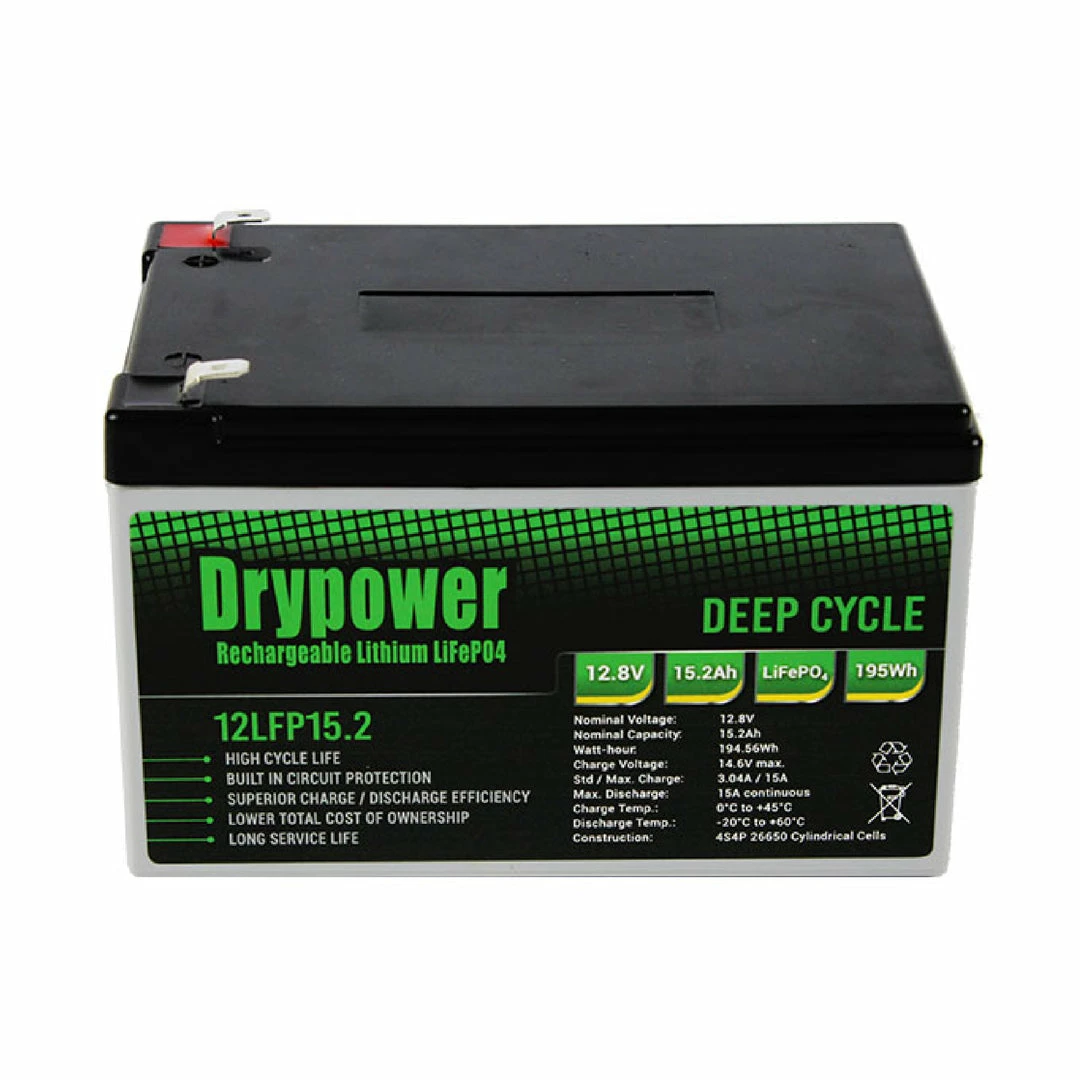

For 15.2 Ah : 4S4P-Cylindrical Construction

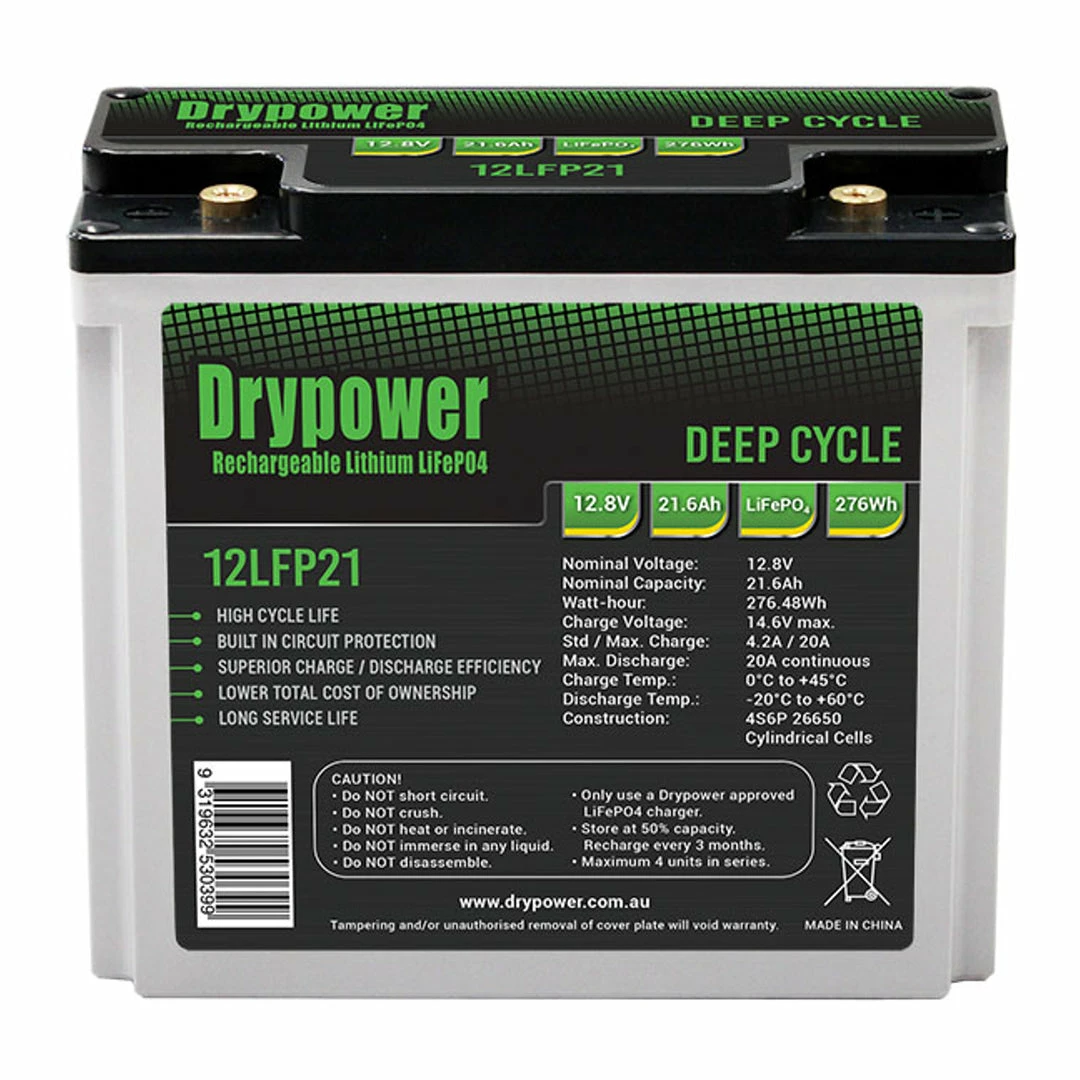

For 21.6 Ah : 4S6P-Cylindrical Construction

For 28.8 Ah/30.4 Ah : 4S8P-Cylindrical Construction

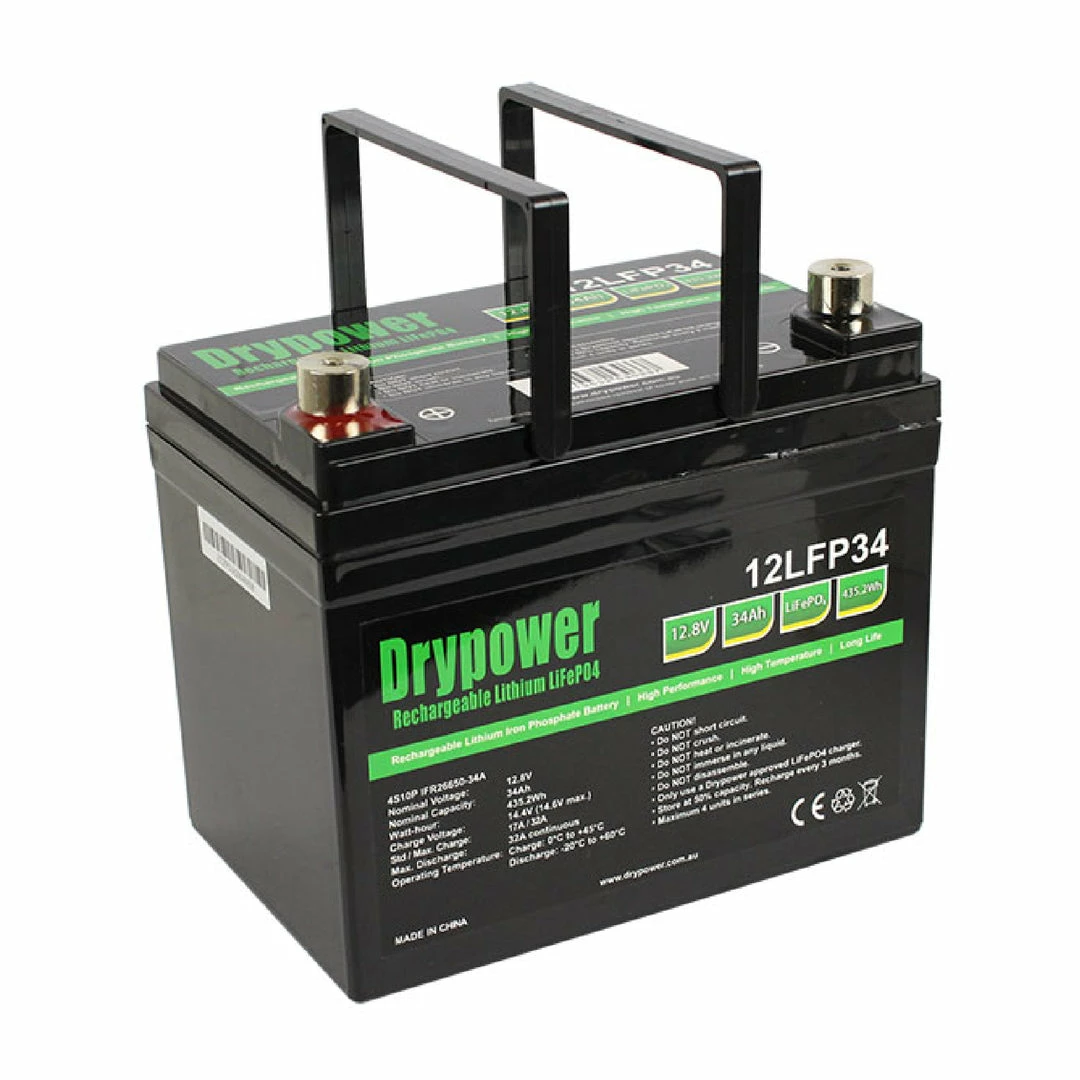

For 34 Ah : 26650-4S10P Construction

For 45.6 Ah : 4S12P-Cylindrical Construction

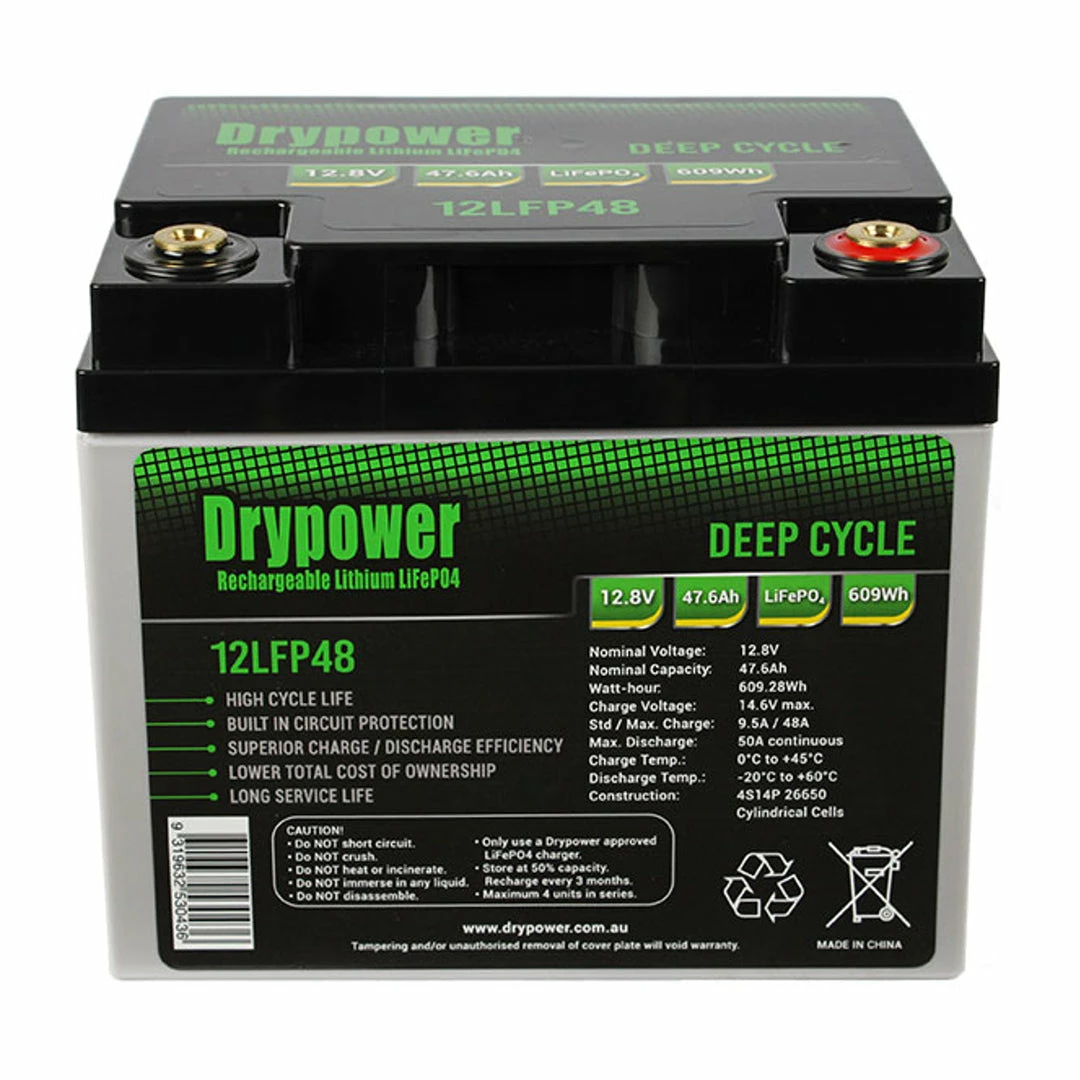

For 47Ah : 4S14P-Cylindrical Construction

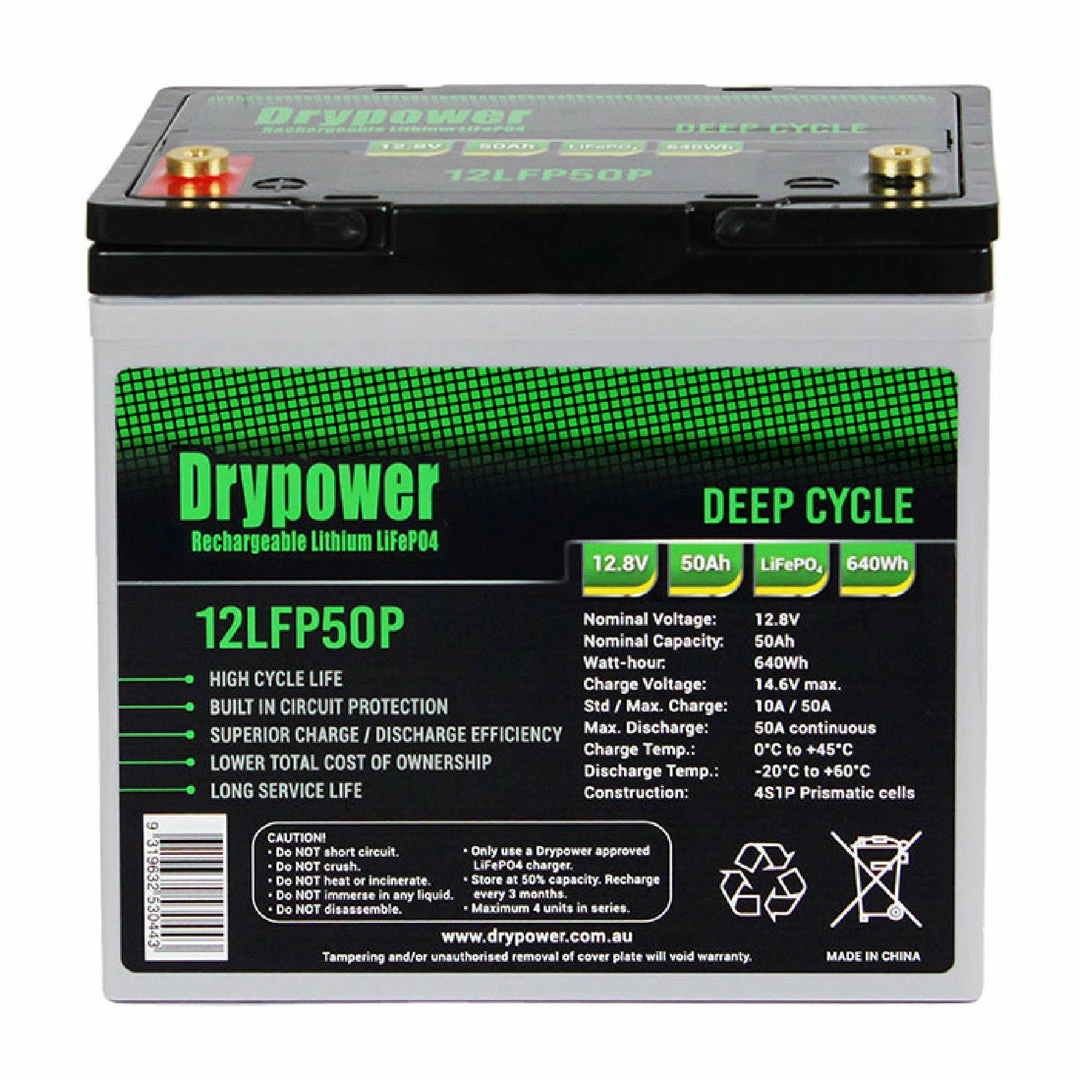

For 50 Ah : 4S10P-Cylindrical Construction

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 36A
• Charge voltage: 14.2V – 14.6V (14.2V recommended)
• Standard charge current: 7.2A
• Max. cont. charge current: 36A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Nil

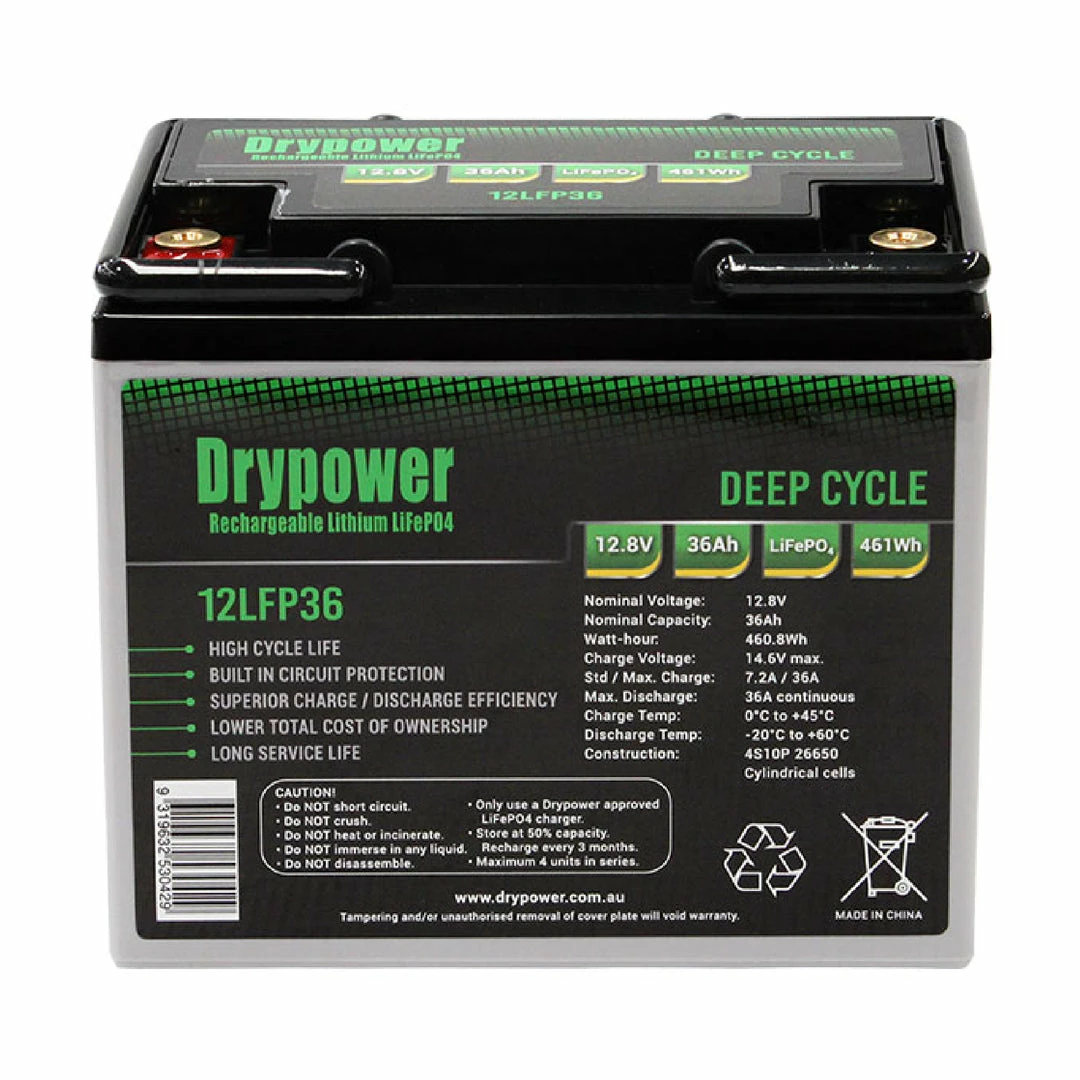

Description	Drypower 12.8V 36Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery – Up to 4 in Series Capable
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Nominal Capacity	36Ah
Watt Hour	460.8Wh
Maximum Continuous Discharge Current	36A
Termination	F8 (M6 Bolt)
Size	4S10P
Width	133mm
Height	170mm
Length/Breadth/Depth	195mm
Weight	4430g
