Drypower 12.8V Lithium Iron Phosphate (LiFePO4) Rechargeable Battery

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

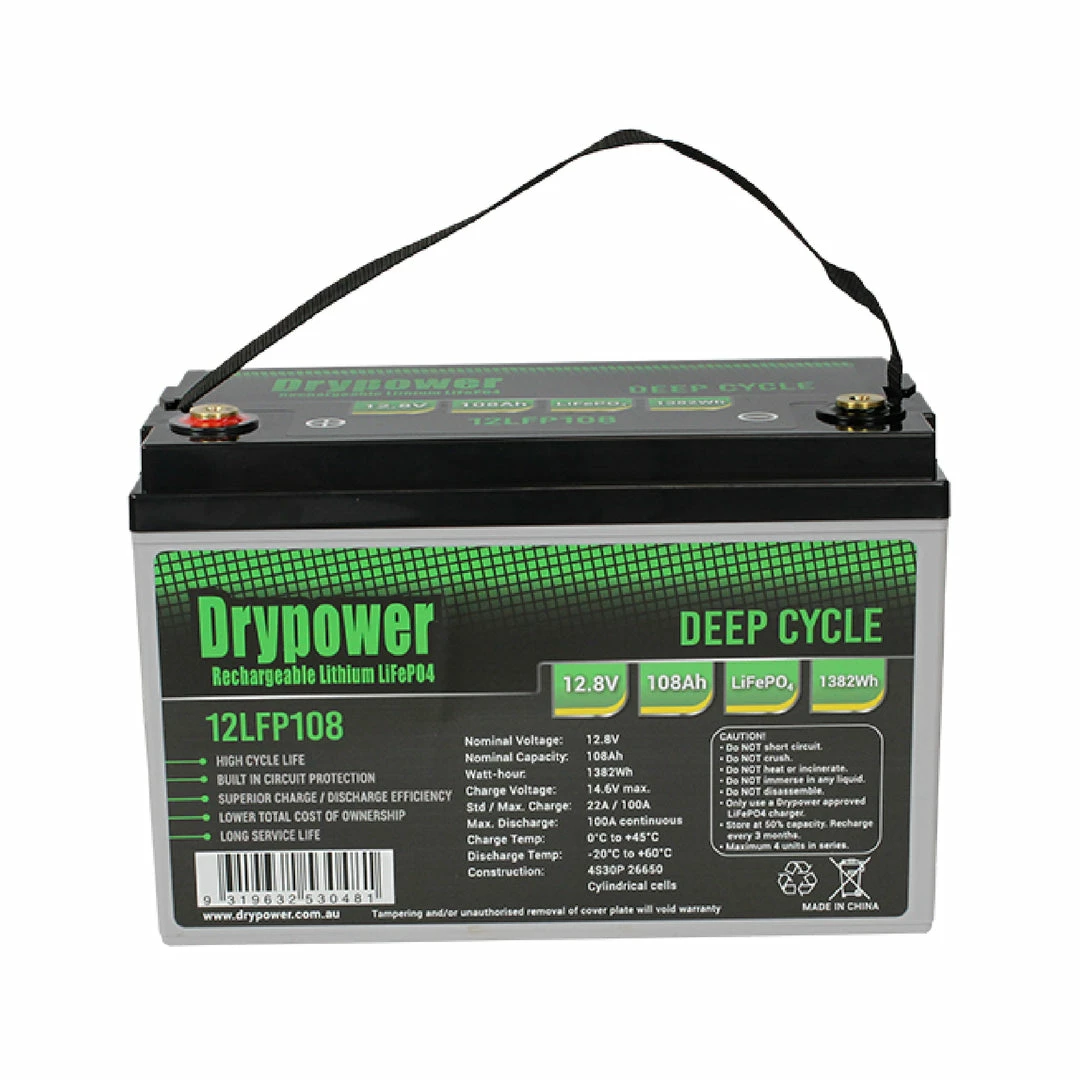

For 108Ah : 4S30P-Cylindrical Construction

For 121.6SAh : 4S32P-Cylindrical Construction

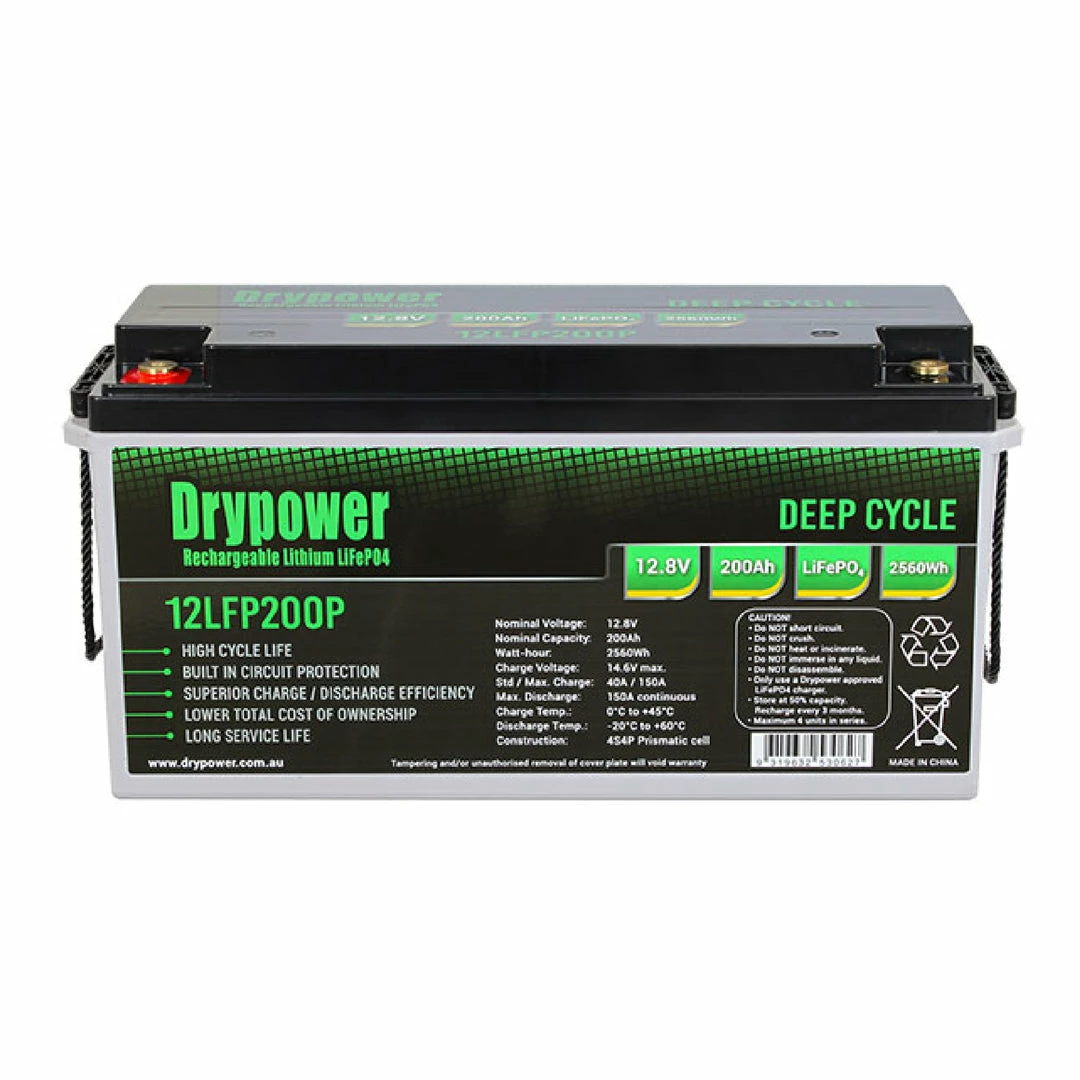

For 200Ah :  4S4P Prismatic Construction

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 80A
• Charge voltage: 14.2V – 14.6V (14.2V recommended)
• Standard charge Current: 24A
• Max. cont. charge current: 80A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Nil

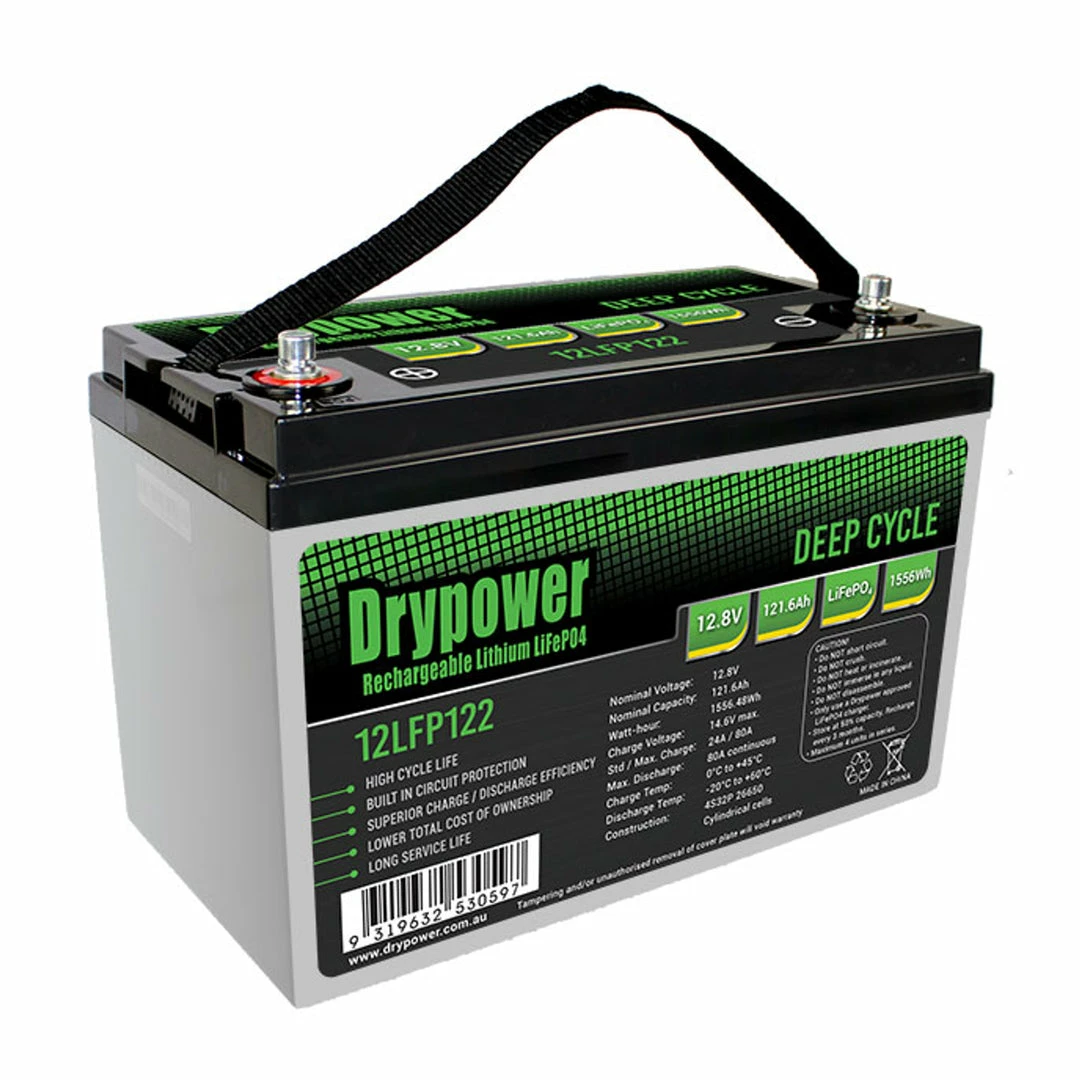

Description	Drypower 12.8V 121.6Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery – Up to 4 in Series Capable
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Nominal Capacity	121.6Ah
Watt Hour	1556.5Wh
Maximum Continuous Discharge Current	80A
Termination	F18 (M8 Bolt)
Size	4S32P
Width	171mm
Height	217mm
Length/Breadth/Depth	329mm
Weight	14360g
