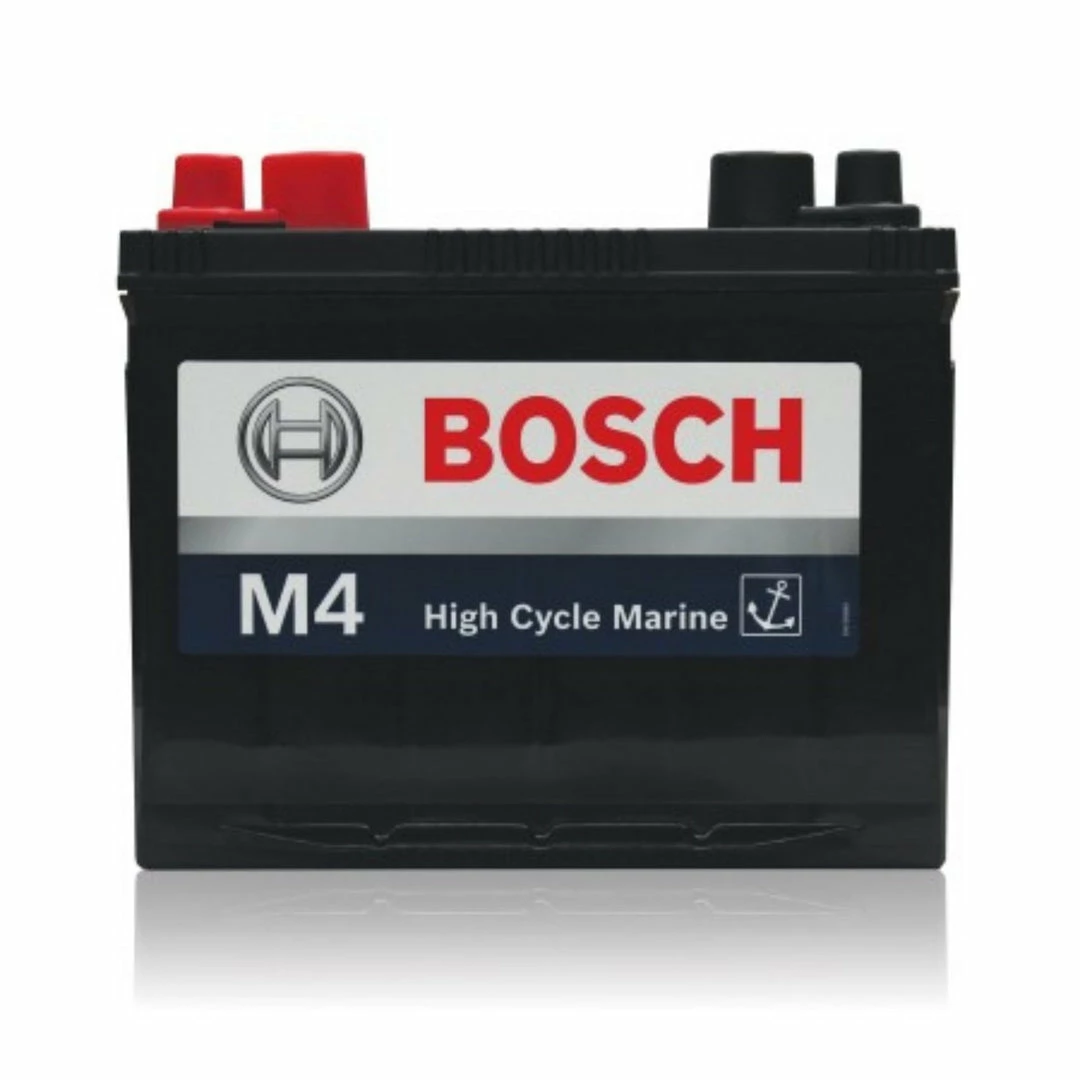

Bosch 12V High Cycle Marine Battery

Bosch marine batteries are carefully engineered to provide the optimum balance between starting and deep cycling duties.

They are also thoroughly insulated to protect against the high frequency vibrations created by rough sea conditions.

HCM is designed for dual purpose to handle both starting and light cycling.

Specifications

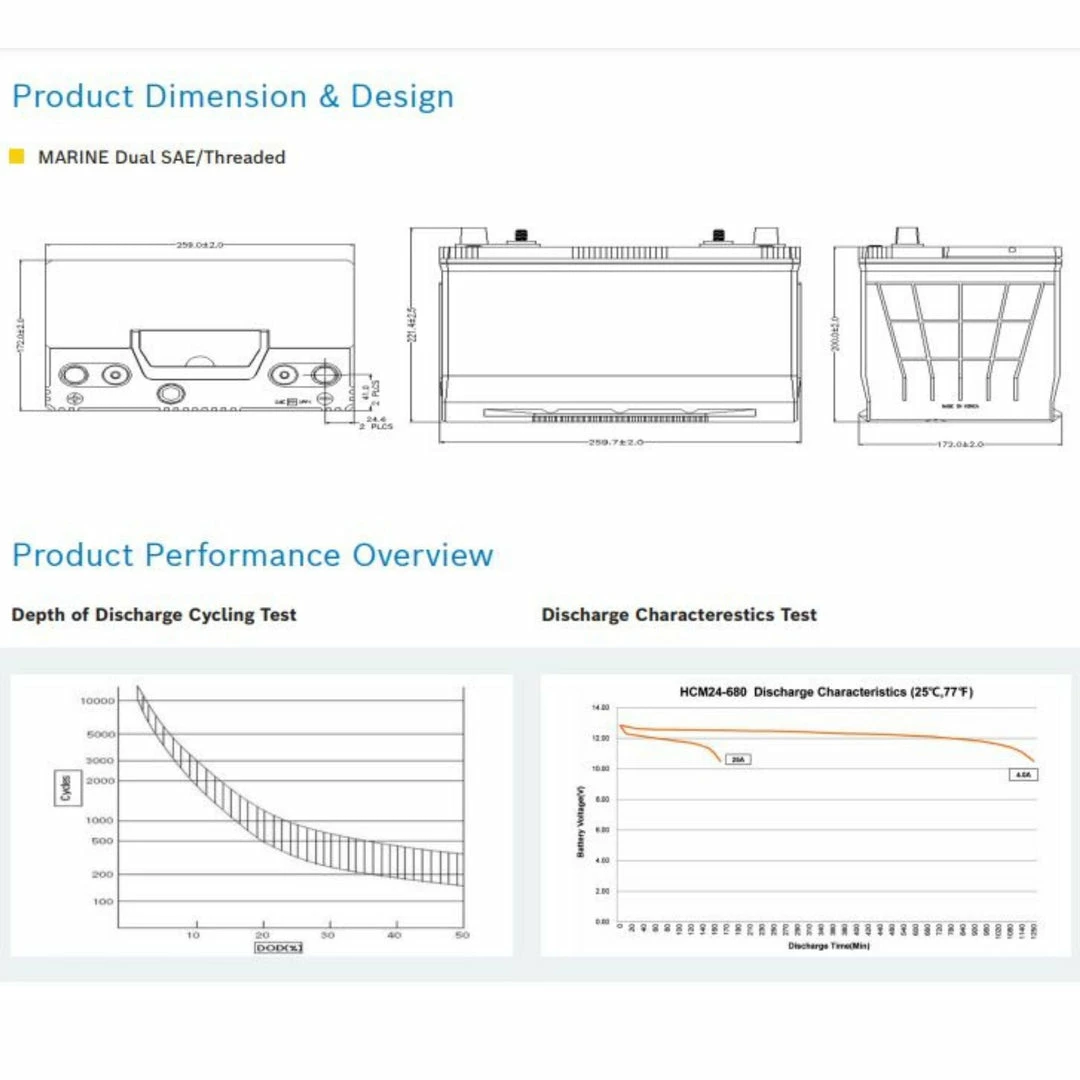

HCM24

• Technology: Calcium Maintenance Free Technology
• Nominal Voltage: 12V
• Nominal Capacity (20HR): 80Ah
• Reserve Capacity: 160 Mins
• Cold Cranking Amperes (CCA): 680 Amps
• Approx Weight (Gross): 19.58 kg (43.00 lbs)
• Terminal: MARINE Dual SAE/Threaded
• Container Material: SAE PP (Colour – Black)
• Lid Design: Labrynth Lid
• Base Hold Down: B7

Dimensions:

• Length: 260 mm (10.23 inches)
• Width: 172 mm (6.77 inches)
• Container Height: 200 mm (7.87 inches)
• Total Height (with Terminal): 221 mm (8.70 inches)

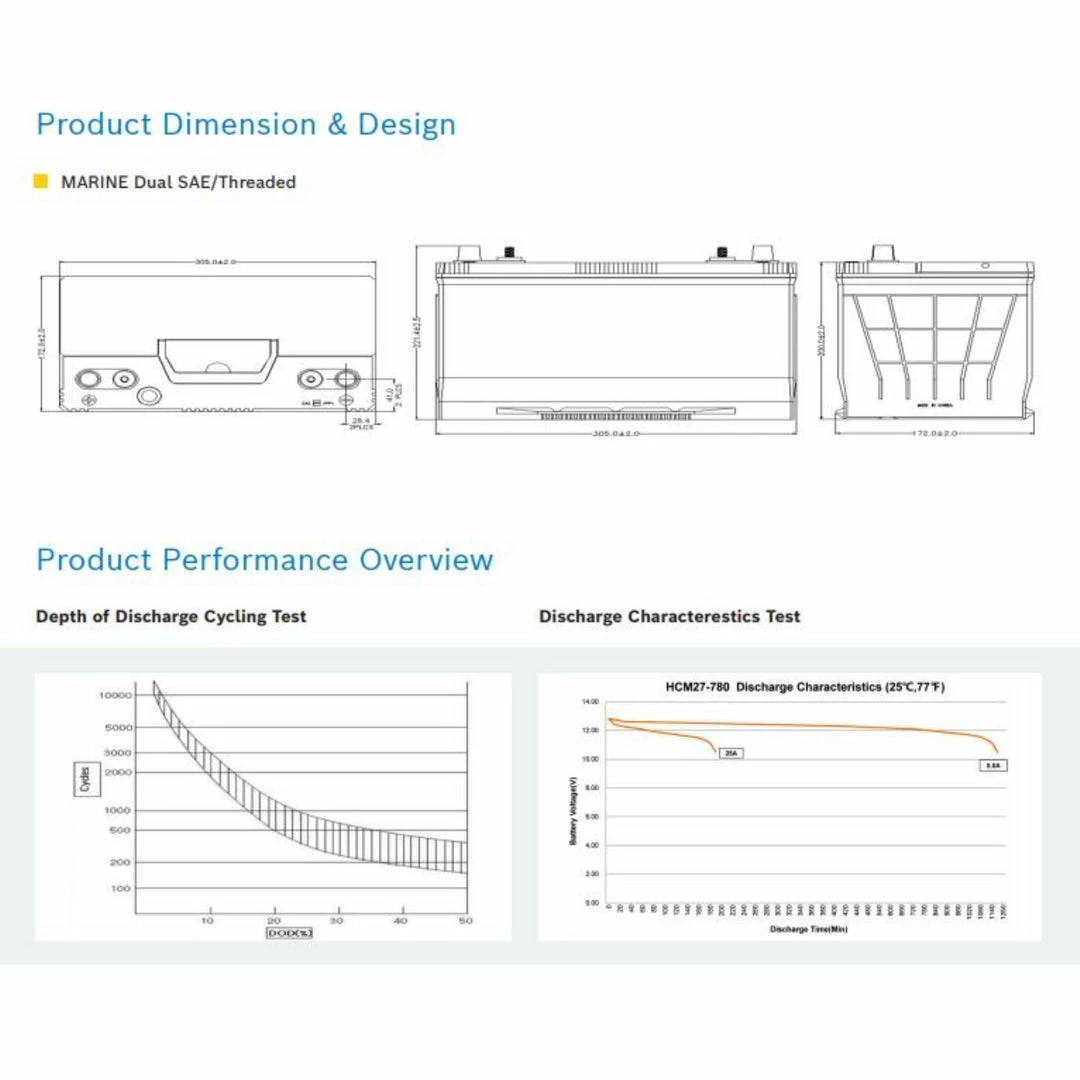

HCM27

• Technology: Calcium Maintenance Free Technology
• Nominal Voltage: 12V
• Nominal Capacity (20HR): 100Ah
• Reserve Capacity: 185 Mins
• Cold Cranking Amperes (CCA): 780 Amps
• Approx Weight (Gross): 22.64 kg (49.80 lbs)
• Terminal: MARINE Dual SAE/Threaded
• Container Material: SAE PP (Colour – Black)
• Lid Design: Labrynth Lid
• Base Hold Down: B7

Dimensions:

• Length: 306 mm (12.04 inches)
• Width: 173 mm (6.81 inches)
• Container Height: 200 mm (7.87 inches)
• Total Height (with Terminal): 225 mm (8.85 inches)

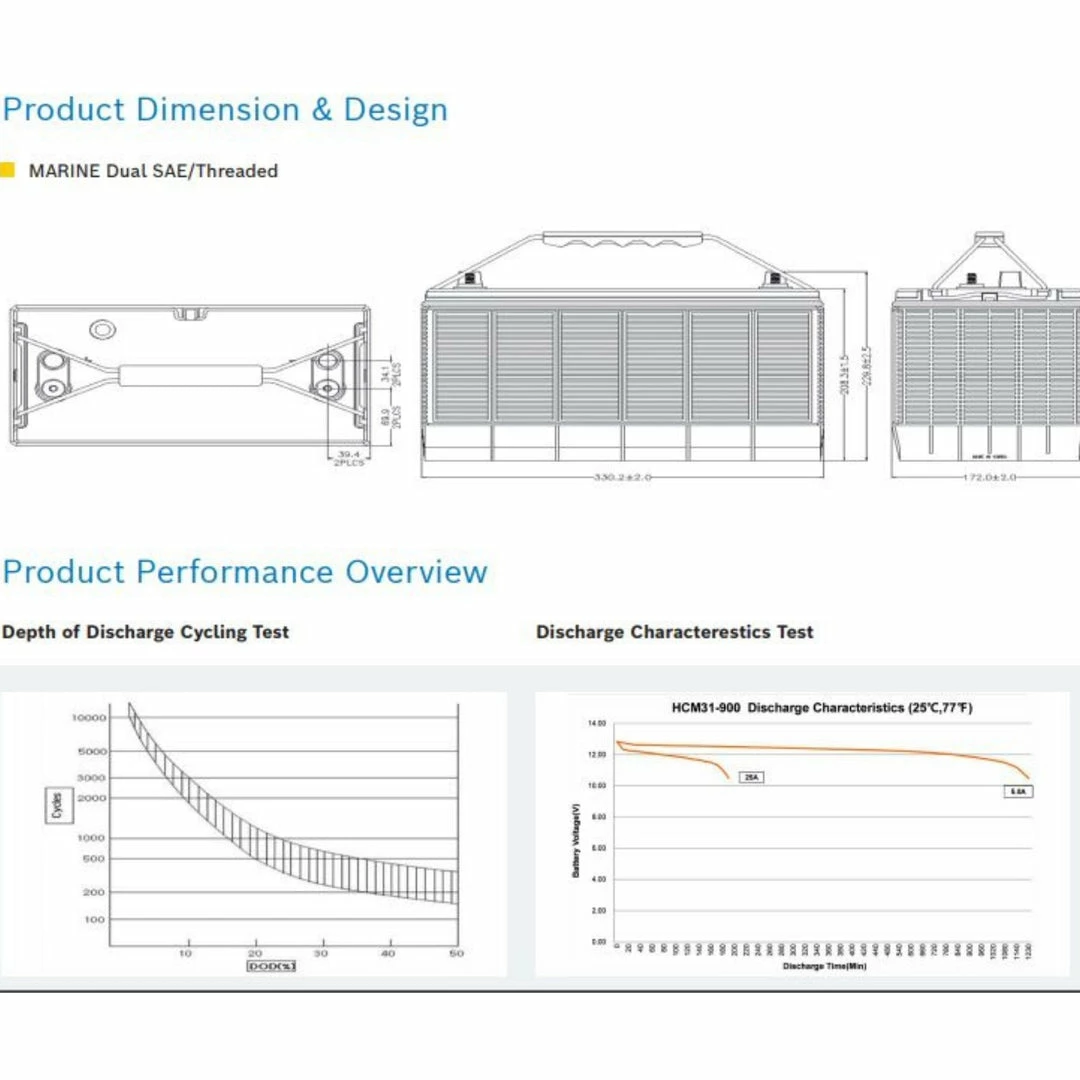

HCM31

• Technology: Calcium Maintenance Free Technology
• Nominal Voltage: 12V
• Nominal Capacity (20HR): 100Ah
• Reserve Capacity: 180 Mins
• Cold Cranking Amperes (CCA): 900 Amps
• Approx Weight (Gross): 24.83 kg (54.62 lbs)
• Terminal: MARINE Dual SAE/Threaded
• Container Material: SAE PP (Colour – Black)
• Lid Design: Labrynth Lid
• Base Hold Down: B0

Dimensions:

• Length: 330 mm (13.00 inches)
• Width: 172 mm (6.77 inches)
• Container Height: 208 mm (8.18 inches)
• Total Height (with Terminal): 230 mm (9.05 inches)
