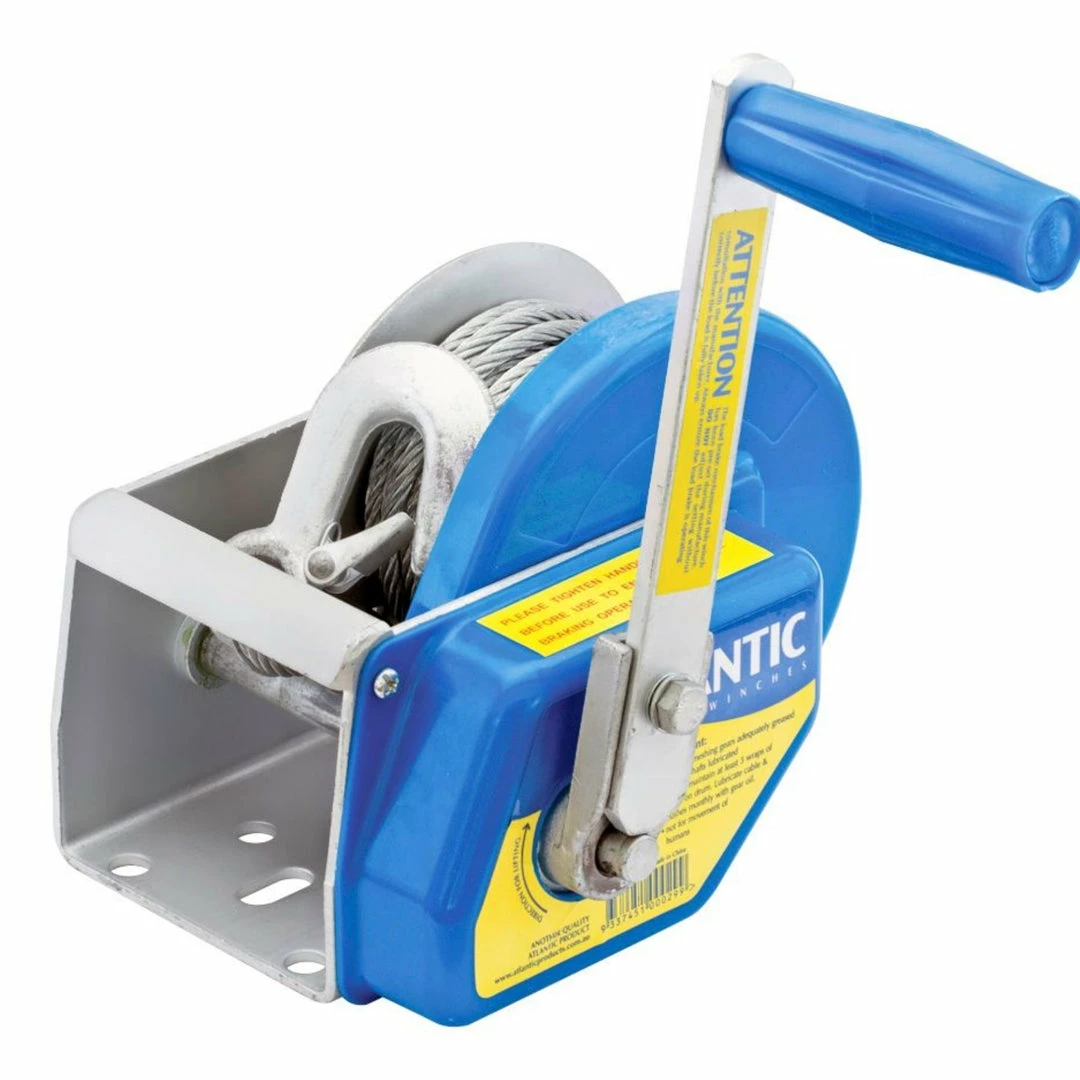

Boat Parts Atlantic Brake Winch
Original price was: $175.02.$91.99Current price is: $91.99.
- Made of environmentally friendly materials
- Online customer care, always here for you.
- Shop with Ease
- Quality products, fair prices.
Our Compact Brake Winch range are available in 5:1 (300kg), 10:1 (500kg) and 15:1 (725kg).
The self actuating automatic braking mechanism ensures the suspension and ‘jerk-free’ movement when lowering a load under pressure.
Specifications
| PRODUCT CODE | BW230C | BW230C-FC | BW260C | BW260C-FC | Â BW290C |
| GEAR RATIO | 5:1 | 5:1 | 10:1 | 10:1 | 15:1 |
| CABLE/WEBBING/ROPE TYPE | Cable | Cable | Cable | Cable | Cable |
| HOOK TYPE | Snap Hook | Snap Hook | Snap Hook | Snap Hook | Snap Hook |
| APPLICATION | Direct Lift | Direct Lift | Direct Lift | Direct Lift | Direct Lift |
| CABLE/WEBBING/ROPE LENGTH (MAXIMUM LENGTH) | 7.5m x 5mm (20m x 5mm) | 7.5m x 5mm (20m x 5mm) | 7.5m x 6mm (9.5mm x 6mm) | 7.5m x 6mm (9.5mm x 6mm) | 8m x 8mm – |
| CAPACITY | 300kg (660lb) | 300kg (660lb) | 500kg (1100lb) | 500kg (1100lb) | 725kg (1600lb) |
| RATCHET TYPE | Self Actuating | Self Actuating | Self Actuating | Self Actuating | Self Actuating |
| UNIT WEIGHT | 5.56kg | 5.56kg | 6.09kg | 6.09kg | 10.5kg |
| TOTAL DIMENSIONS (W X H X D) | 265 x 254 x 190.5 | 265 x 254 x 190.5 | 265 x 254 x 190.5 | 265 x 254 x 190.5 | 265 x 265.5 x 251.5 |
| BARCODE NUMBER | 9337451000299 | 9337451003672 | 9337451000305 | 9337451003696 | 9337451003771 |
| Capacity | BW230C-330kg, BW230C-FC-300kg, BW260C-500kg, BW260C-FC-500kg, BW290C-725kg |
|---|
