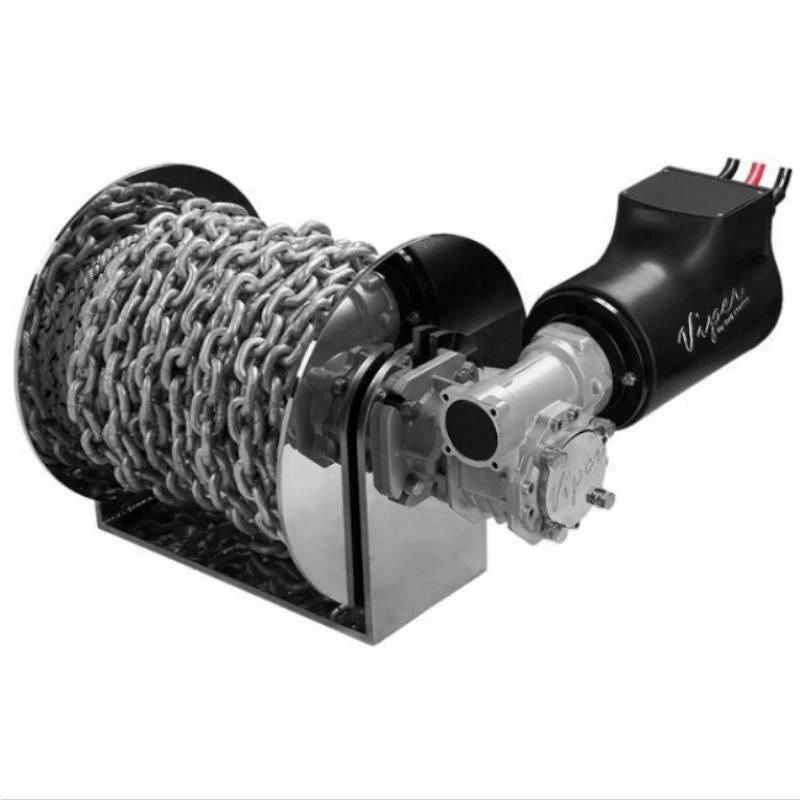

Bell Marine Viper Pro Series II 1500 Electric Anchor Winch Bundle Including Rope Kit

The VIPER Pro Series II 1500W anchor winch is the most powerful in our range and is designed for larger vessel installations of 8 meters plus.The 1500 has a huge rope capacity of up to 200 meters of 6mm double braid rope, spliced to 10 meters of 8mm short link gal anchor chain making anchor in deep water a breeze and the 1500 is powerful enough to haul up a 37lb plus anchor all day.

• The Viper 1500 is our fastest and most powerful drum winch in our range with an amazing fall rate of 55mtrs per minute!
• All you have to add is your own cabling or one of our custom made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!

Please Note: 1m of 3 B&S Cable is already attached to the motor with cable joiners at the ends for ease of installation (1500w winch has a 3 cable setup, see the wiring diagram)

• With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 1 piece 32mm solid stainless steel shaft and 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.
• Constructed from 8mm plate 316 marine grade stainless steel (hand polished to a mirror finish) & comes std a 5 YEAR Viper performance warranty.
• If you take your boating seriously and have an application that requires reliability and unsurpassed performance, then you can’t go past the Viper Pro Series II 1500!

Includes:

• Viper pro series ii 1500 anchor winch – VIP-30003 supplied with 1 mtr 3 b&s power leads & joining connectors pressure tested & sealed
• 100mtrs of 8mm 3 strand premium rope – VIP-30026 / 200mtrs of 6mm double braid premium rope & 10mtrs of 8mm Short Link Chain – 30027
• Spliced to 10mtrs of 8mm Short Link Chain
• Viper pro series anchor swivel large – VIP-30019
• Viper deluxe anchor roller large – VIP-30002
• 400amp reversing solenoid – VIP-30024
• Led illuminated marine rocker switch – VIP-90021
• Viper laser inscribed led illuminated switch cover – VIP-90046
• 135 amp flush mount circuit breaker with rubber seal – VIP-30025
• Single led switch stainless steel face plate – VIP-30051
• Combo led switch & circuit breaker s/s face plate – VIP-30052
• 5mm stainless steel sandwich plate
• All fixing hardware
• Installation notes & wiring diagram

Specifications

PART NUMBER	MAX. FALL RATE	MAX. RETRIEVAL RATE	SUIT VESSEL LENGTH	MAX. LOAD	WEIGHT
VIP-30003-8	50m per minute	46m per minute	8m +	360kg	28kg
VIP-30003-6	50m per minute	46m per minute	8m +	360kg	28kg
