Bell Marine Viper Pro Marine Anchor Winch Wiring Loom To Suit Boats – 6 To 8 Meters (Micro/Rapid 1000) Boat Parts

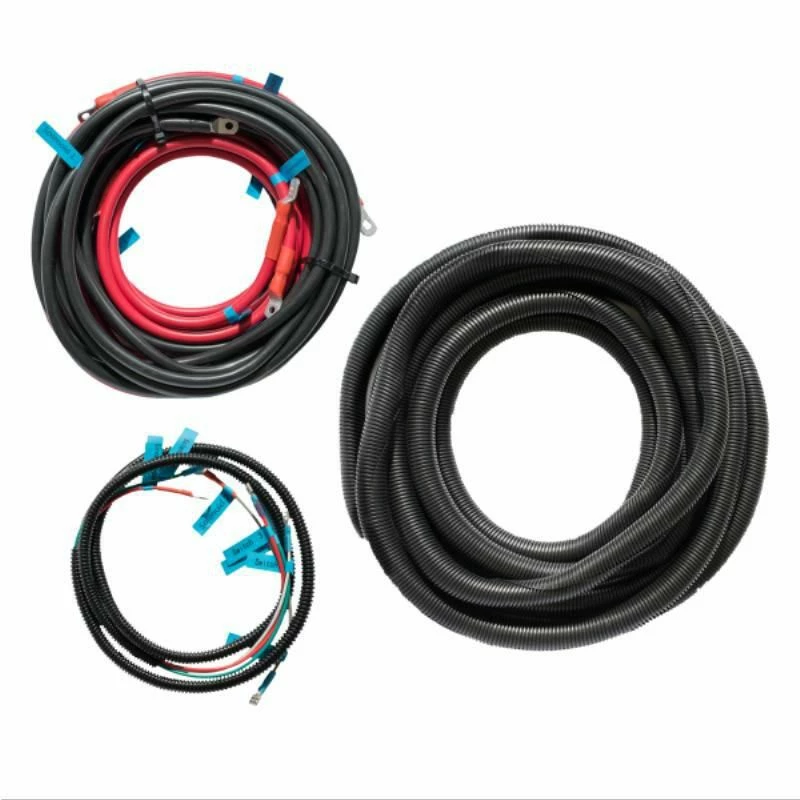

Bell Marine anchor winch wiring looms are individually hand crafted and fully tested before we ship. Simply order your loom depending on the length of your boat when you order your winch and all you will need is the tools and know how to complete your installation.

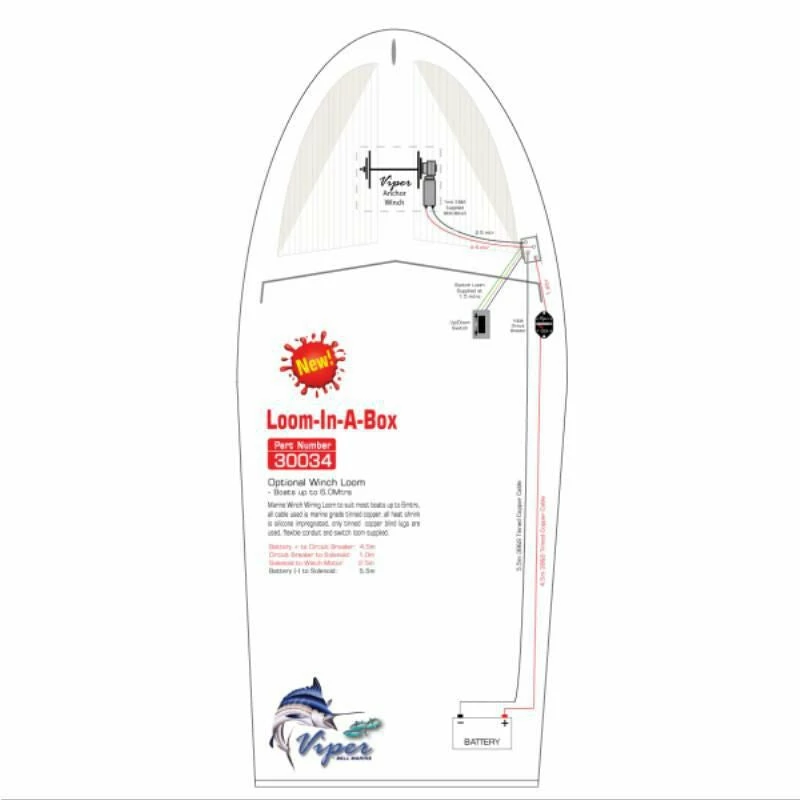

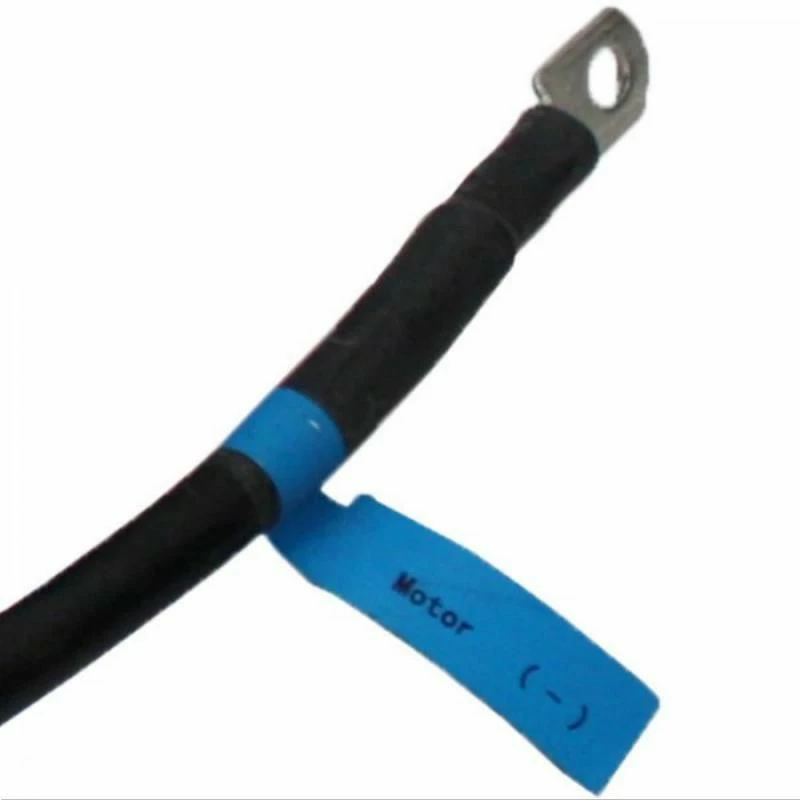

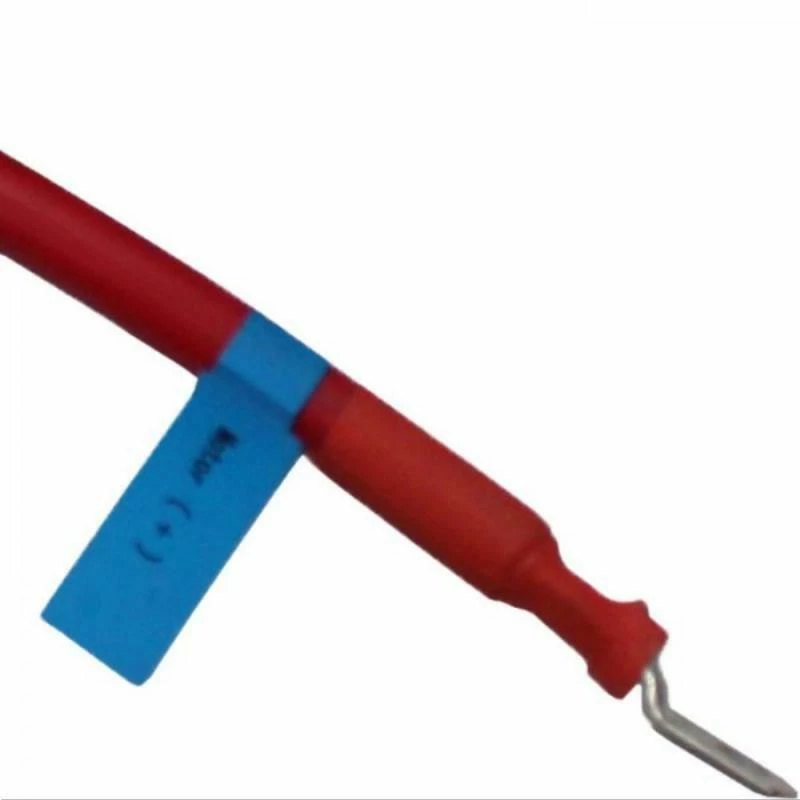

It only uses marine grade 3 B&S (25mm2) tinned copper wire, blind tinned copper lugs, silicone impregnated marine heat shrink and each connector is labelled for ease of installation. Every loom includes flexible conduit for ease of installation and your 1.5M switch loom is also included.  Simply connect “A” to “A” and ”B” to “B” without the need to refer to your wiring diagram and your winch will come to life.



Up to 6M

POSITIVE CABLE	NEGATIVE CABLE
BATTERY TO CIRCUIT BREAKER: 4.5M	Battery to Solenoid: 5.5m
CIRCUIT BREAKER TO SOLENOID: 1.0M	Not Applicable
SOLENOID TO WINCH MOTOR: 2.5M	Solenoid to Winch Motor: 2.5m



Up to 8M

POSITIVE CABLE	NEGATIVE CABLE
BATTERY TO CIRCUIT BREAKER: 5.8M	Battery to Solenoid: 6.8m
CIRCUIT BREAKER TO SOLENOID: 1.5M	Not Applicable
SOLENOID TO WINCH MOTOR: 3.2M	Solenoid to Winch Motor: 3.2m

NOTE 1: Switch Looms are 1.5m in length and should suit most boat.

NOTE 2: Viper Winch Motors are fitted with 1 M of 3B&S cable totaling  3.5m from Solenoid to Winch Motor

NOTE 3: We have tried to accommodate for almost all boats up to 6.0m, however we cannot guarantee that one size fits all.

WARNING: Install your Viper winch and loom into the boat before you start to fit any other components! You may need to relocate them to suit cable lengths and individual boats.

Specifications

PART NUMBER	WEIGHT	L X W X H
VIP-30034	7kg	340mm x 370mm x 320mm
VIP-30035	8.1kg	370mm x 340mm x 300mm
