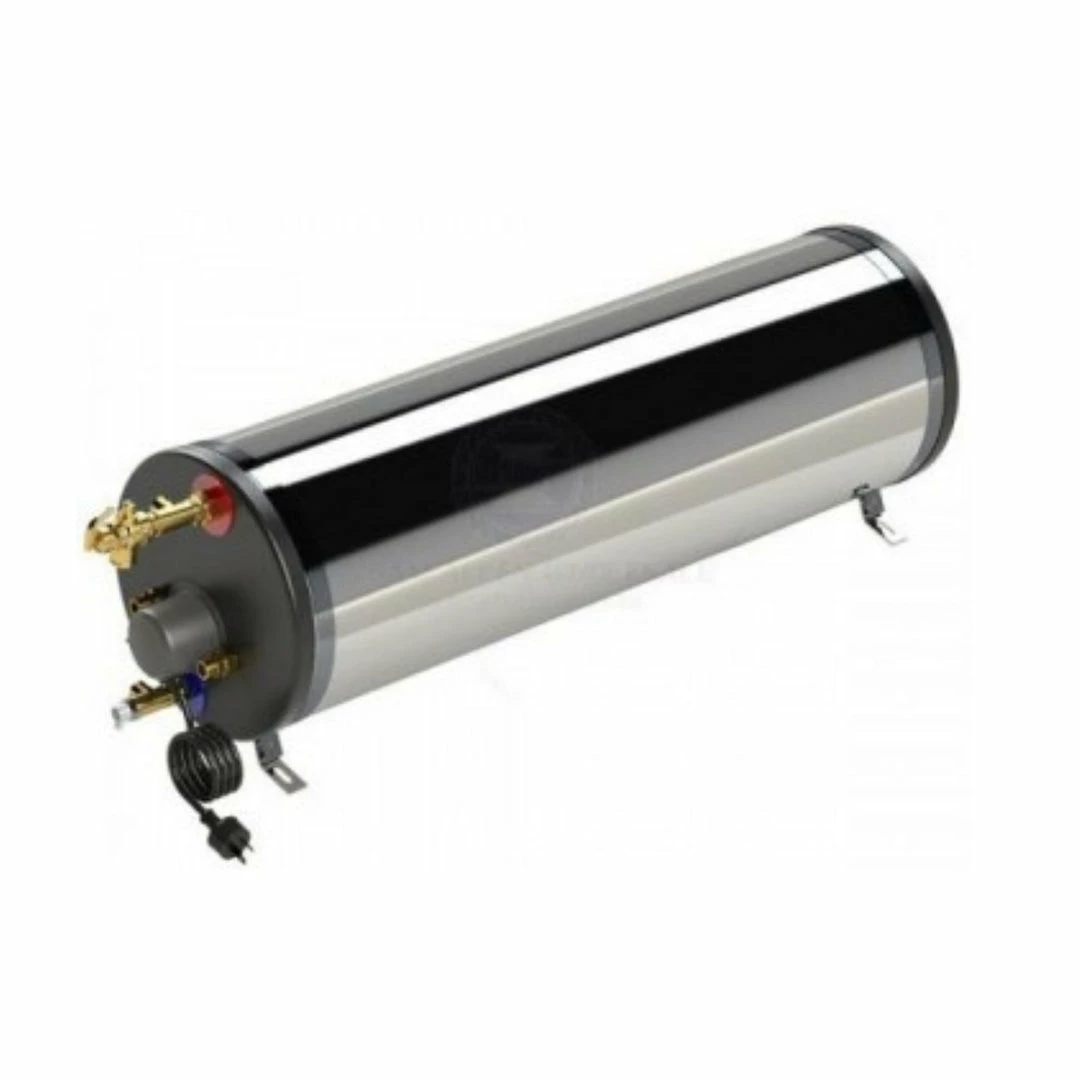

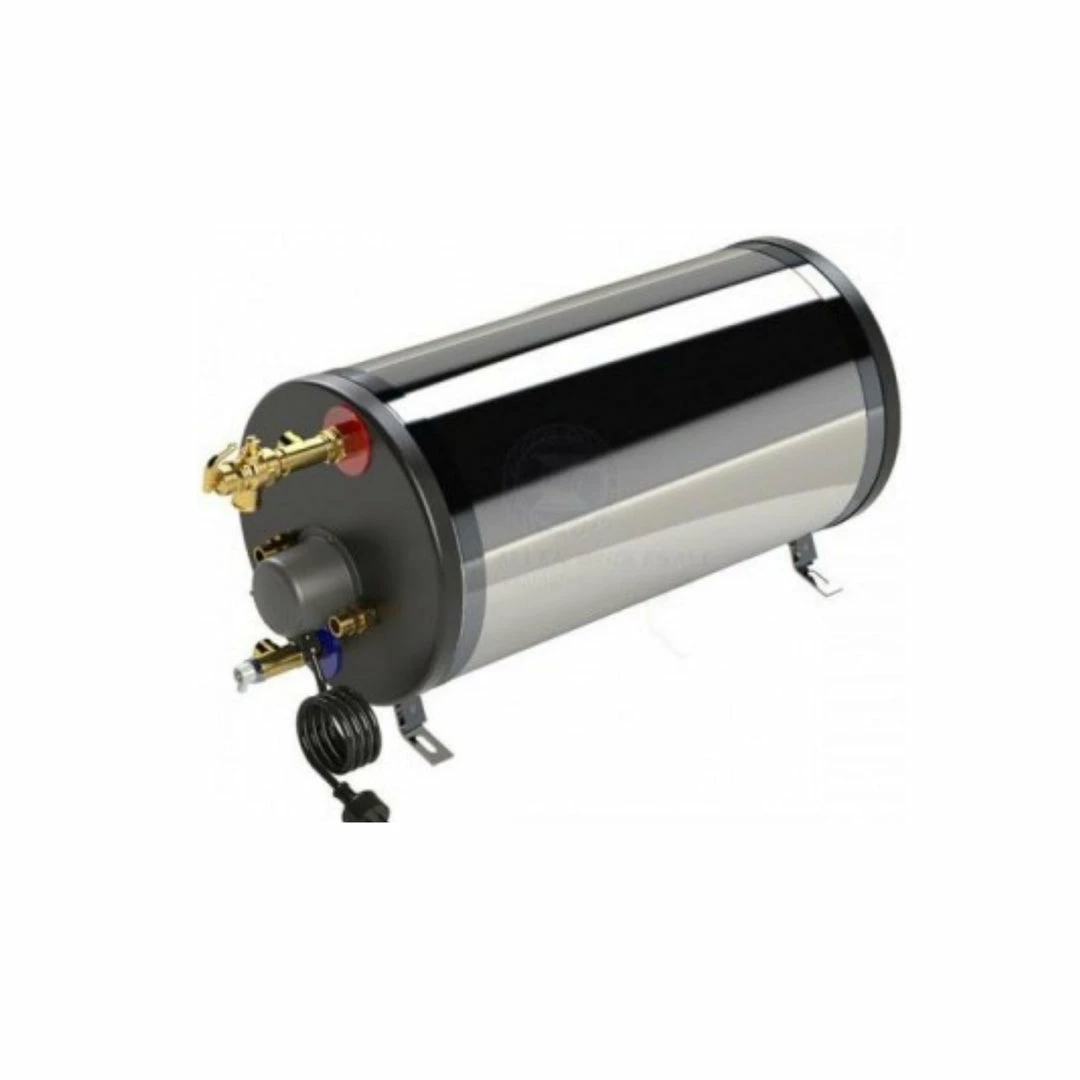

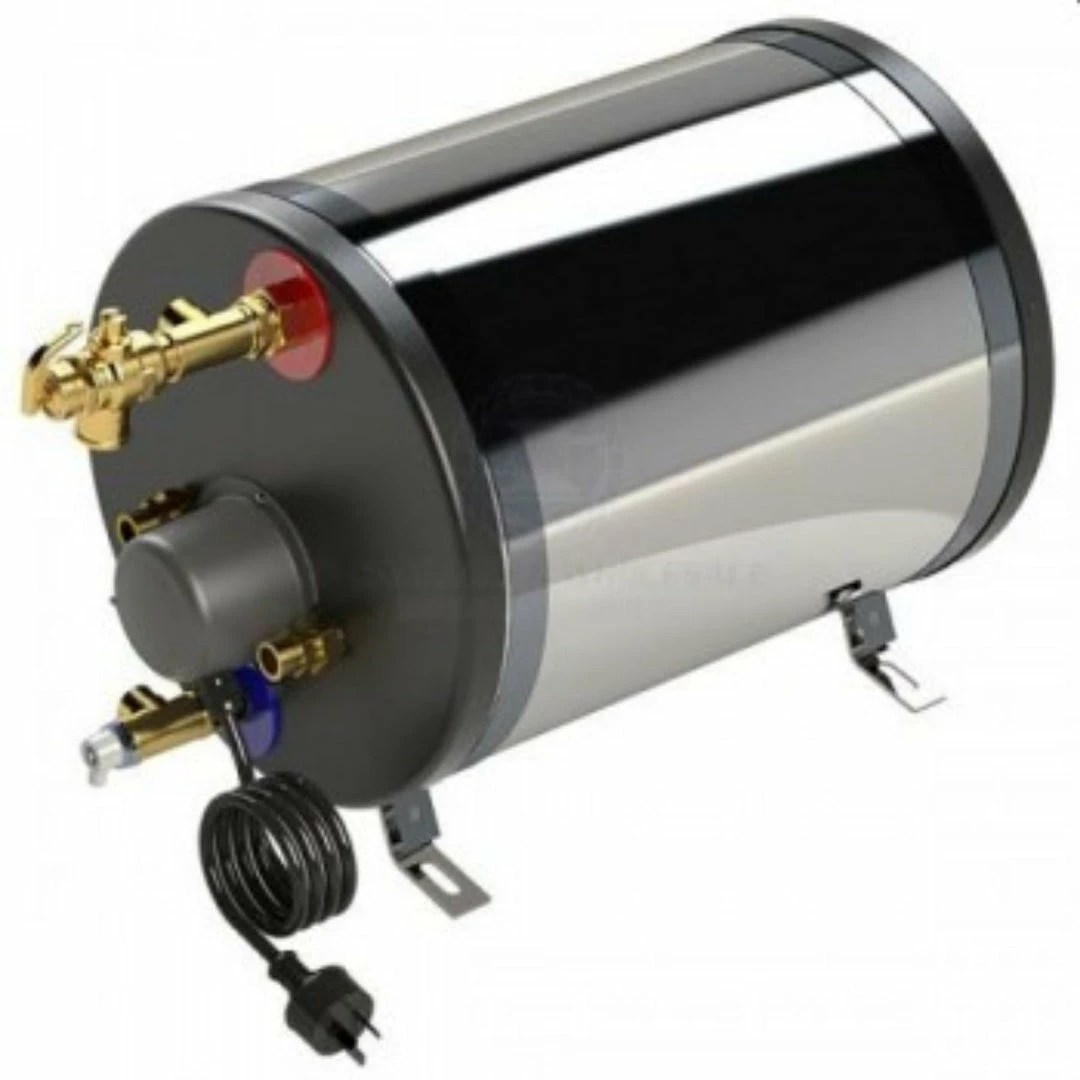

ATI Stainless Steel 1200W Marine Water Heater Boat Parts

FEATURES

• Dual heating – Incoloy Electric Element and Heat Exchanger Coil.
• Incoloy* Electrical Heating Element is available in 1250 Watts allowing hot water production when engine heat is not available.
• Heat Exchanger Coil features a large surface area designed to generate a large output of hot water.
• Insulation uses closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free).
• Water Heater Tank has both Pickling and Passivation treatment for increased anti-corrosion performance.**
• Adjustable safety thermostat.
• Pressure relief and non-return valve.
• Easy drain connection.
• Power cable and Australian plug supplied (AS/NZS 3112).
• Purpose built from high-quality materials for the marine environment:
• Tank: AISI 316L Stainless Steel.
• Heat Exchanger: AISI 316L Stainless Steel.
• External Casing: AISI 304 Stainless Steel.
• Mounting Brackets: AISI 304 Stainless Steel.
• RCM Certified: SAA-180560-EA.
• CE Certified EN 60335

• • Can be picked up from our Mona Vale Office in Sydney

IMAGE	PART NO.	DESCRIPTION	CAPACITY	ELEMENT	DIMENSIONS
	44304	ATI® Water Heater 22L S/S 230V-1250W Au/Nz Standard	22Ltr	800W	320mm x 565mm x 331mm
	44305	ATI® Water Heater 30L S/S 230V-1250W Au/Nz Standard	30Ltr	1200W	320mm x 700mm x 331mm
	44306	ATI® Water Heater 45L S/S 230V-1250W Au/Nz Standard	45Ltr	1200W	320mm x 960mm x 331mm
	44307	ATI® Water Heater 60L S/S 230V-1250W Au/Nz Standard	60Ltr	1200W	320mm x 1145mm x 331mm
	44308	ATI® Water Heater 80L S/S 230V-1250W Au/Nz Standard	80Ltr	1200W	320mm x 1355mm x 331mm
